Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | VMIVME-77501 (VMIVME-7750 Series) |
| Manufacturer | GE Fanuc / VMIC (Emerson Intelligent Platforms) |
| Product Type | 6U VMEbus Single-Board Computer (SBC) / VME Processor Module |
| Processor | Intel Pentium III, up to 1.26 GHz, 512 KB L2 Advanced Transfer Cache |
| Chipset | Intel 815E (GMCH + ICH2) |
| Front-Side Bus | 133 MHz |
| Memory | 1× 144-pin SODIMM, up to 512 MB PC133 SDRAM (ECC optional) |
| Local Storage | CompactFlash Type-II slot (up to 1 GB); optional IDE/ATA-100 interface |
| Graphics | On-board AGP SVGA controller, 4 MB display cache, up to 1600×1200 resolution |
| Ethernet | Dual 10/100BaseTX RJ-45 (Intel 82559 + ICH2 integrated) |
| Serial Ports | 2× RS-232 (16550-compatible, front-panel accessible) |
| USB | 2× USB ports (USB 1.1) |
| VME Interface | P1: standard VME connector; P2: VME64 connector; VMEbus Rev. C.1 compliant |
| VME Bridge | Transparent PCI-to-VME bridge (Universe II class) |
| Expansion Slot | 1× PMC (PCI Mezzanine Card) slot, 5 V PCI signaling |
| Non-Volatile Memory | 32 KB battery-backed NVRAM for IP, configuration & SOE clock |
| Operating System Support | VxWorks, QNX, LynxOS, Linux, Windows XP/2000/NT Embedded, Solaris |
| Power Supply | VME backplane +5 V DC (typical 15–30 W); ±12 V for serial/audio |
| Operating Temperature | 0 °C to +60 °C (standard industrial); -40 °C to +85 °C (extended rugged) |
| Humidity | 5 %–95 % RH, non-condensing |
| Mechanical Form | 6U Eurocard, 233.4 × 160 × 20.3 mm (single-slot) |
| Weight | Approx. 0.5 kg |
| Cooling | Passive, fan-less (heat-sink based) |
| Compliance | CE, cULus, MIL-STD-810 (vibration/shock), PCB G3 conformal coating option |
| Lifecycle Status | Obsolete – supplied as MRO spare / refurbished unit |
Main Features and Advantages
X86-Class Computing in a Rugged VME Form Factor
The defining advantage of the GE VMIVME-77501 is its ability to deliver mature Intel Pentium III x86 computing performance—up to 1.26 GHz with 512 KB of L2 cache—inside a standard 6U VME slot. This means engineers can leverage the entire x86 software ecosystem, from real-time operating systems like VxWorks and QNX to general-purpose stacks like Embedded Linux and Windows NT. The GE VMIVME-77501 effectively eliminates the software-portability gap that traditionally separated commercial off-the-shelf (COTS) PCs from ruggedized industrial controllers.
Transparent PCI-to-VME Bridging for Multi-CPU Architectures
Unlike simpler VME processors that act merely as bus masters, the GE VMIVME-77501 incorporates a transparent PCI-to-VME bridge that allows it to function as a system controller or as a peripheral CPU in multi-processor VME chassis. This capability enables the GE VMIVME-77501 to coordinate seamlessly with data-acquisition boards, communication cards, and I/O modules across the VME backplane, delivering sustained data-transfer rates suitable for high-speed signal processing and closed-loop control.
Rich, Plant-Ready Connectivity

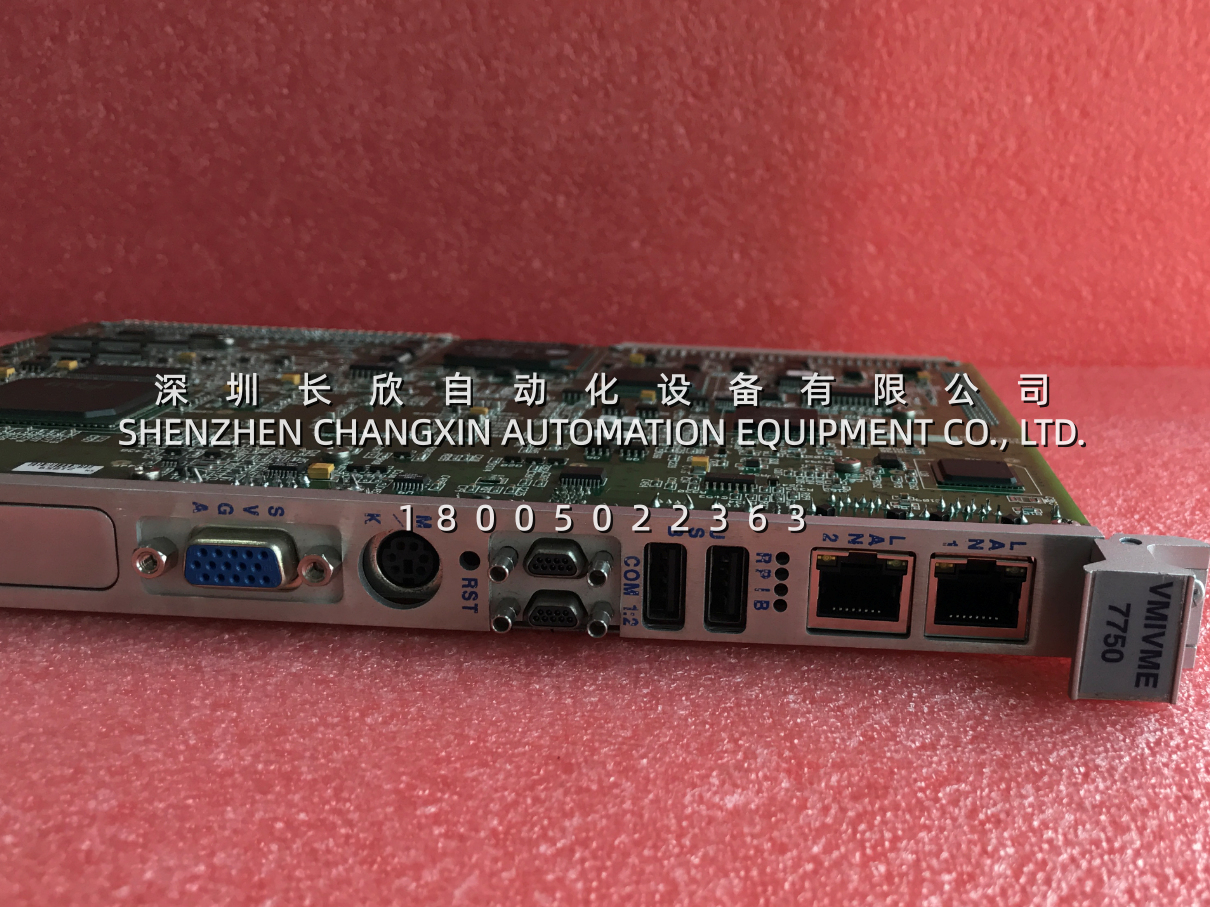

The GE VMIVME-77501 ships with dual 10/100BaseTX Ethernet ports for redundant network topologies, two RS-232 serial ports for legacy device integration, USB ports for peripherals, and a front-panel VGA output driven by its 4 MB AGP SVGA controller. Combined with the on-board PMC expansion slot, the can be tailored to virtually any industrial protocol or interface requirement—whether that means adding a Profibus slave card, a Fibre Channel adapter, a 1553B interface, or a high-speed DSP mezzanine. This flexibility future-proofs the against evolving communication standards.
