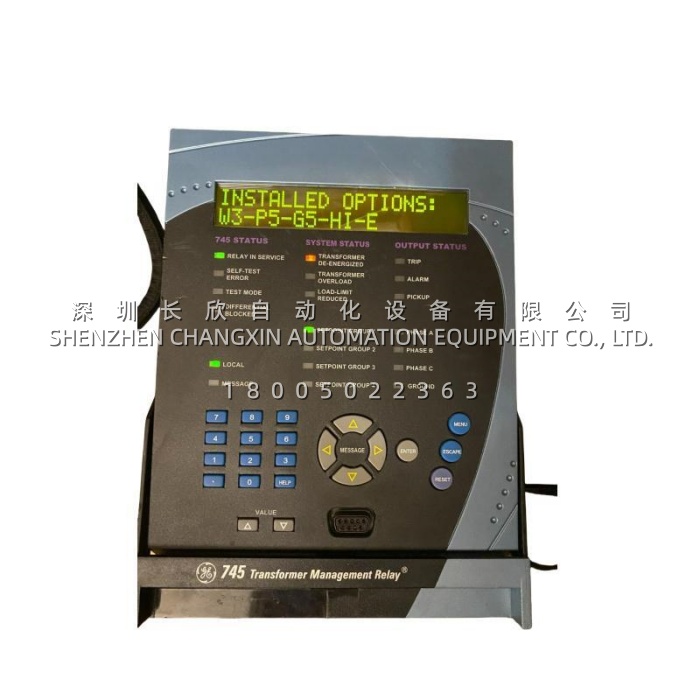

Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | GE 745-W3-P511-G51-HI-R-E |
| Manufacturer | GE Multilin (GE Vernova) |
| Product Type | Digital Transformer Management Relay |
| Series | Multilin 745 Transformer Protection System |
| Winding Configuration | W3 – Three windings per phase |
| Phase Current Inputs | P511 – W1: 5 A, W2: 1 A, W3: 1 A |
| Ground Current Inputs | G51 – W1/2: 5 A, W2/3: 1 A |
| Control Power | HI – 90 to 300 V DC; 70 to 265 V AC at 48–62 Hz |
| Protection Functions | Differential, Restricted Ground Fault, Overcurrent, Overexcitation |
| Display | Enhanced 40-character backlit LCD |
| Communication Interfaces | RS232 (front), RS485/RS422 (rear), 10BaseT Ethernet |
| Communication Protocols | Modbus RTU, Modbus TCP/IP, DNP 3.0 Level 2 |
| Logic Inputs | 16 (dry/wet contact) |
| Output Relays | 9 (1 solid-state + 4 Form-A + 4 Form-C) |
| Operating Temperature | -40°C to +60°C |
Main Features and Advantages
The GE 745-W3-P511-G51-HI-R-E combines differential protection, backup overcurrent, restricted ground fault detection, thermal overload modeling, and transformer life monitoring into a single integrated platform. This consolidation reduces panel space requirements, simplifies wiring, and provides a unified interface for configuration and diagnostics.
Comprehensive Differential Protection: At its core, the GE 745-W3-P511-G51-HI-R-E performs percentage-restrained differential protection with harmonic restraint to prevent false tripping during transformer energization. The relay continuously compares currents entering and leaving the protected zone, detecting internal faults with high sensitivity while remaining secure against external through-faults and magnetizing inrush.
Restricted Ground Fault Capability: The R option in the GE 745-W3-P511-G51-HI-R-E enables restricted ground fault (ground differential) protection, a function that provides sensitive detection of winding-to-ground faults that traditional differential schemes may miss. This capability is particularly valuable in resistance-grounded systems where fault currents are intentionally limited, requiring higher detection sensitivity.
Flexible CT Configuration: The mixed 5 A and 1 A CT inputs of the GE 745-W3-P511-G51-HI-R-E accommodate transformers where different sides use different CT secondary ratings, eliminating the need for interposing CTs and simplifying protection system design. Dynamic CT ratio mismatch correction ensures accurate differential calculations despite ratio disparities.
Advanced Monitoring and Diagnostics: The GE 745-W3-P511-G51-HI-R-E captures waveform data and event records, transforming fault diagnosis from estimation into data-driven analysis. The enhanced LCD display provides real-time access to metering values, status indicators, and setpoints, while multiple communication protocols enable integration with SCADA and plant automation systems.
