Application Scenarios

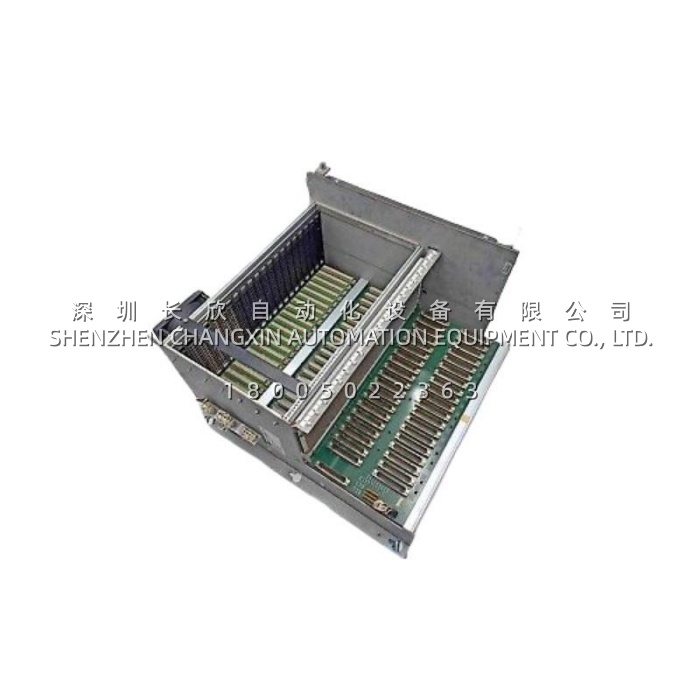

A combined-cycle power plant in the Middle East had a recurring issue with intermittent communication faults on their gas turbine control system. After two weeks of chasing ghost signals, the maintenance team traced the problem to a cracked backplane trace in the original rack assembly—the copper had fatigued after a decade of thermal cycling. Replacing the chassis with a GE 259B2460BTG2 rack assembly restored signal integrity and eliminated the intermittent faults. The modular VMEbus architecture allowed the team to transfer all existing control cards to the new backplane without reconfiguring the system logic .

This scenario illustrates the backplane’s critical role: it’s not flashy, but when it fails or degrades, the entire turbine control system becomes unreliable. Common applications for the 259B2460BTG2 rack assembly include:

• Gas turbine control – hosts combustion monitoring and fuel control modules for real-time regulation
• Steam turbine automation – provides mounting for governor and protection system components
• Combined cycle plants – integrates with HRSG control and sequencing logic
• Power generation facilities – supports distributed control architecture for multi-unit installations
• Industrial cogeneration – enables modular expansion of control capabilities as plant capacity grows
