Application Scenarios
In a large cement plant’s main kiln drive application, a 250kW ABB ACS800 inverter was experiencing intermittent overcurrent trips during material load fluctuations, causing costly production stoppages. Upon inspection, the original IGBT module showed degraded switching characteristics, and the gate driver board exhibited intermittent fault feedback signals. By replacing both components as a matched 6MBI225U-120 / AGDR-71C kit, the engineering team restored full system performance. The new 6MBI225U-120 module delivered consistent 1.95V VCE(sat) characteristics, while the AGDR-71C driver’s desaturation detection circuitry responded to transient overcurrent events within microseconds, protecting the power stage without nuisance tripping. The plant has now operated continuously for over 18 months without a single drive-related failure, demonstrating the reliability of this integrated solution for demanding continuous-process industries.
Parameters

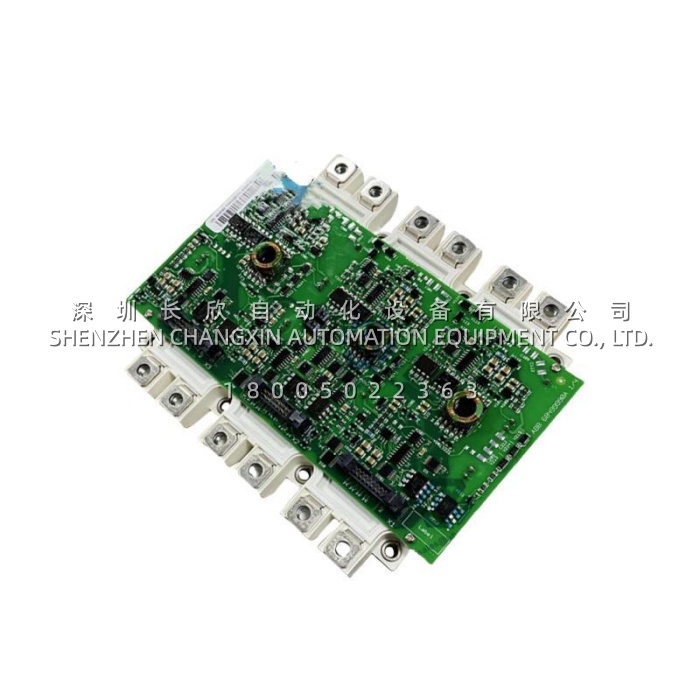

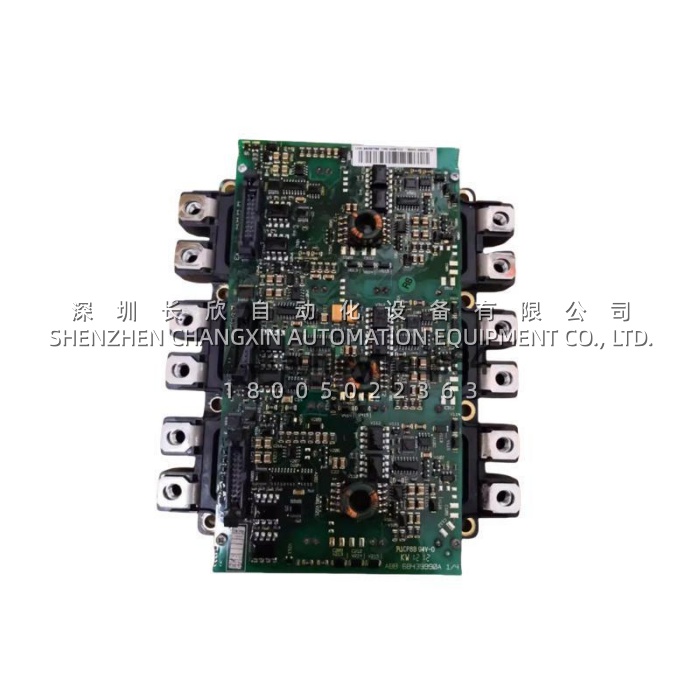

ABB AGDR-71C Gate Driver Board (68561906A)
| Main Parameters | Value/Description |
|---|---|
| Product Model | ABB AGDR-71C (68561906A) |
| Manufacturer | ABB |
| Product Category | IGBT Gate Driver Board |
| Supply Voltage | ±15V DC or 24V DC (typical) |
| Gate Drive Output | +15V (turn-on) / -8V (turn-off) |
| Driver Isolation Voltage | 2500V AC RMS (control side to power side) |
| Protection Functions | DESAT short-circuit detection, UVLO, NTC over-temperature, soft turn-off, active Miller clamp |
| Control Signal Interface | Fiber optic PWM input from RDCU control board |
| Fault Feedback | Fiber optic return signal to main control |
| DESAT Response Time | 6–10µs (typical) |
| Operating Temperature | 0 to +60°C (storage: -40 to +85°C) |
| Dimensions | ≈150 × 100 mm |
Fuji 6MBI225U-120 IGBT Power Module
| Main Parameters | Value/Description |
|---|---|
| Product Model | Fuji 6MBI225U-120 |
| Manufacturer | Fuji Electric |
| Product Category | Six-Pack IGBT Power Module |
| Collector-Emitter Voltage (VCES) | 1200V |
| Continuous Collector Current (IC) | 225A @ Tc=80°C / 300A @ Tc=25°C |
| Peak Pulse Current (ICp) | 600A (1ms) |
| VCE(sat) (Typical) | 1.95V @ IC=225A, VGE=15V, Tj=25°C |
| Circuit Topology | Three-phase bridge (Six-Pack) with free-wheeling diodes and NTC thermistor |
| Isolation Voltage | 2500V AC (baseplate to terminals, 1 minute) |
| Power Dissipation (PC) | 1040W |
| Junction Temperature (Tj) | +150°C (max) |
| Storage Temperature (Tstg) | -40 to +125°C |
Technical Principles and Innovative Values
Innovation Point 1: Integrated Six-Pack Topology with Built-In NTC Monitoring
The Fuji 6MBI225U-120 integrates six IGBTs with anti-parallel free-wheeling diodes in a single compact module, creating a complete three-phase inverter bridge. This six-in-one package eliminates the need for discrete component assembly, reducing parasitic inductance and simplifying the power stage design. The built-in NTC thermistor provides real-time junction temperature monitoring, enabling the AGDR-71C driver to implement dynamic thermal management and prevent overheating failures.
Innovation Point 2: Precision Gate Drive with Active Miller Clamping
The ABB AGDR-71C driver delivers +15V/-8V gate drive pulses with active Miller clamping technology. This feature prevents unintended IGBT turn-on during high dV/dt events—a common cause of cross-conduction and shoot-through faults in high-power inverters. Combined with a 2500V AC isolation barrier, the driver ensures safe separation between the low-voltage control circuitry and the hazardous high-voltage power stage.
Innovation Point 3: Comprehensive Fault Detection and Soft Turn-Off
The integrates desaturation (DESAT) detection that monitors VCE(sat) during each switching cycle. When a short-circuit or overcurrent condition is detected (within 6–10µs), the driver initiates a soft turn-off sequence, gently discharging the IGBT gate to prevent destructive voltage spikes—a critical differentiator from basic drivers that simply issue a hard shutoff. The driver also features undervoltage lockout (UVLO) to prevent IGBTs from operating in the linear region, which would cause rapid overheating.
Innovation Point 4: Matched System Performance for ABB Drives
