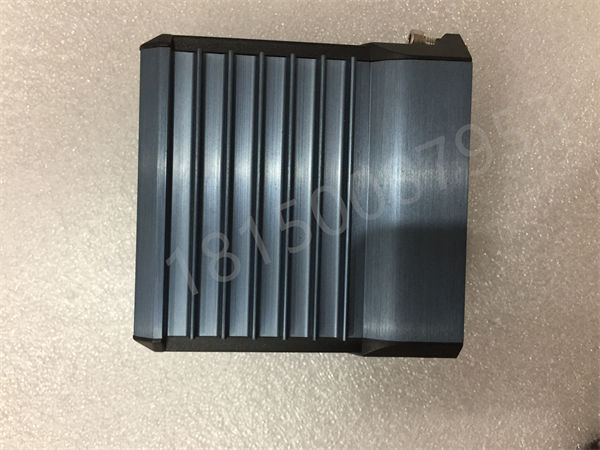

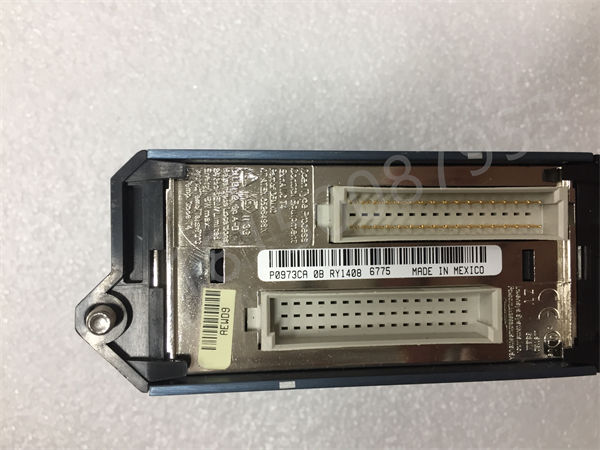

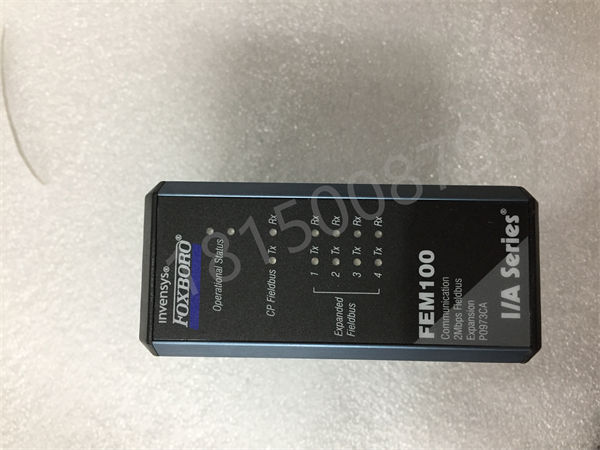

FEM100 FOXBORO
On the other hand,from the perspective of manufacturers who manufacture programmable controllers,there is no need to design controllers specifically according to user order requirements during the manufacturing phase,which is suitable for mass production.Due to these characteristics,programmable controllers quickly gained popularity and rapid development in the industrial control industry after their introduction.At present,programmable controllers have become a powerful tool for factory automation and have been widely used.
Users can use a programmer to read out the contents of RAM or write user programs into RAM,hence RAM is also known as read/write memory.It is a volatile memory,and when its power is disconnected,the stored information will be lost.RAM has high working speed,low price,and is easy to rewrite.In order to save user programs and certain data(such as counter counts)in RAM after turning off the external power supply of the PLC,a lithium battery is equipped for the RAM.Some PLCs still use RAM to store user programs.The lithium battery can be used for 2-5 years
When the lithium battery needs to be replaced,the”battery voltage too low”LED on the PLC panel will light up,and an internal flag will change to”l”status.Its normally open contact can be used to turn on the indicator light or sound and light alarm on the control panel,notifying users to replace the lithium battery in a timely manner.(2)Read Only Memory(ROM)The contents of a ROM can only be read out and cannot be written to.It is non volatile and can still store stored content even after its power is lost
ROM-A system program commonly used to store PLCs.According to the scanning principle of PLC ladder program,scan the program sentence by sentence in the order of left,right,top,and bottom.When encountering a program jump instruction,the jump address of the program is determined based on whether the jump condition is met.When the user program involves input and output states,the PLC reads the corresponding input terminal state obtained from the previous stage from the input image register,reads the corresponding image register from the output image register
performs logical operations according to the user program,and stores it in the relevant device register.For each device,the content stored in the device image register will change with the program execution process.Supply chain transformation has ushered in a new era of real-time,end-to-end transparency,and performance management.One of the key developments in this technology is RFID tags and readers,which help automate inventory processes,simplify workflows,and accelerate production line operations.
