Application Scenarios
Picture a batch solvent-recovery skid that has run unchanged since 2006. The 1756-A13 chassis holds a 1756-L65, a 1756-EN2T talking to the plant historian, a 1756-CN2R on the ControlNet trunk to the motor control centers, and a rack-full of 1756-IF16 / 1756-OF8 analogue cards plus the 1756-IH16I you stock beside it. The program is 31 programs across 6 tasks, heavy on SFC batch sequencing and 14,000-rung ladder, and the last major change was a recipe revision three years ago. One night the controller’s OK LED goes solid red during a thunderstorm, the major fault is unrecoverable, and the skid is down with 8,000 L of solvent sitting at 78 °C.
That is the failure the 1756-L65 was designed to survive quietly. Pull the faulted CPU, drop in a tested spare with the same series letter, fit the 1756-M13 memory/battery module carrying the application image, and the controller boots from the nonvolatile store with the same name, same node, same I/O tree and the same 5000-point scan. No download, no laptop, no re-validation. The operator sees the same batch phase on the PanelView, the historian never sees a gap longer than the switchover, and the batch finishes inside the same permit window. The win is not the spec — it is that nobody had to open the logic.
Parameter

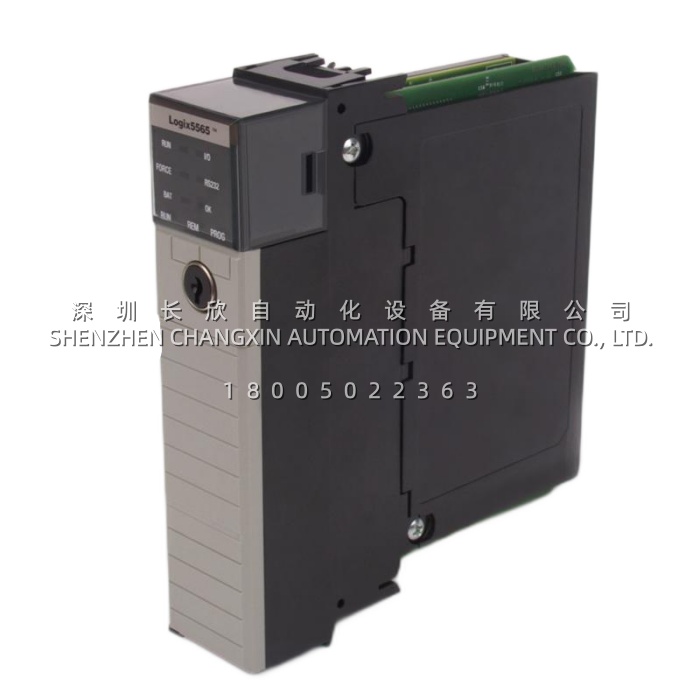

| Main Parameters | Value / Description |
|---|---|
| Product Model | 1756-L65 — Logix5565 controller, original ControlLogix L6x family |
| Manufacturer | Allen-Bradley, Rockwell Automation (USA) |
| Product Category | ControlLogix 1756 chassis-based programmable automation controller (PAC / CPU) |
| Memory | 48 KB SRAM user memory (volatile, battery-backed) plus 1 MB built-in nonvolatile flash. The 1 MB flash is the救命 detail — the CPU can boot without a memory module if the image is valid |
| Battery / memory device | 1756-M13 (or 1756-M08, 1756-M16) memory/battery module in the front socket. Battery: BR2/3A 3V lithium, ~5 yr life at 25 °C, <1% loss per month at 0 °C. A flashing STAT/OK is your early warning |
| I/O capacity | Up to ~5,000 digital or analogue I/O points in the local backplane; 128 TCP/IP connections per controller is the practical CIP ceiling, not the marketing one |
| Tasks / programs | 32 tasks (1 continuous + 31 periodic), 100 programs per controller, 16 program priorities. SFC, LD, FBD, ST and structured-text all in one project |
| Messaging & strings | 4,000 MSG instructions, 128 string tags, 512 timers/counters, 256 PID loops native in the instruction set |
| Scan / performance | Controller scan class, not a fixed “scan time” — typical Logix5565 continuous-task execution is single-digit ms for modest logic; analogue PID is scheduled independently. Suitable for machine and batch control, not a microsecond-level safety PLC |
| Comms ports | 1× RS-232 (DH-485 / DF1 point-to-point / ASCII / serial printer, 9-pin D-shell on front); backplane-resident CIP to 1756-ENET/EN2T/EN3T, 1756-CN2R, 1756-DHRIO as fitted |
| Redundancy | Redundancy-capable chassis design when paired with 1756-RM / 1756-RMC and a second PSU/chassis. The 1756-L65 itself is not a safety-rated controller — pair with GuardLogix or a hardwired safety relay for SIL/PLe functions |
| Chassis fit | 1756-A4 (4-slot) through 1756-A17 (17-slot); 9 slots supported natively on the backplane addressing model. Always slot 0 or the slot defined in the I/O tree — moving it changes the tree |
| Indicators | OK (green), FAULT (red), STAT (status/activity), FORCE, 7-segment display for node/status codes, RS-232 TX/RX LEDs. Learn the blink patterns; they tell you battery vs. major fault vs. I/O mismatch |
| Software / firmware | RSLogix 5000 v13–v16 era; Studio 5000 Logix Designer (later revs support L6x with the L5K import path). Confirm controller rev vs. project rev before a download — a rev mismatch is the #1 DOA-on-site cause |
| Certifications | UL 508, CSA, CE (EN 61131-2, EN 61326-1), C-Tick, FM Div 2; operates to IEC 61131-3 execution model |
| Environment | 0…+60 °C, 5…95% RH non-condensing, Pollution Degree 2. Open-style module — chassis + cabinet required, no conformal coating standard |
| Lifecycle | Discontinued by Rockwell (L6x family retired; current path is 1756-L7x Series B, then 5069 CompactLogix). Stock now is surplus / refurb / repair-channel; series letter and firmware rev are make-or-break |
