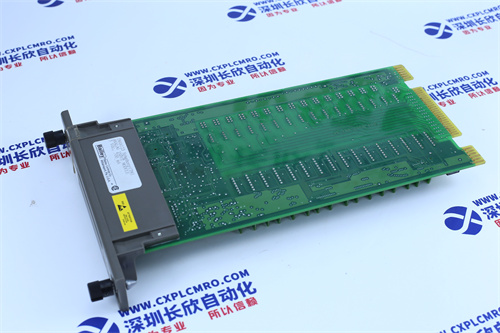

BENTLY 3500/25-01-01-00

The Bently Nevada 3500/25 Enhanced Baseband module is a device for monitoring the vibration and bearing condition of rotating machinery. The module converts vibration signals into baseband signals and provides a range of diagnostic functions to help users identify and diagnose faults. The module has the following features:

High precision

High reliability
Multiple diagnostic functions are available

Easy to install and maintain
Product parameters:

Model: 3500/25-01-01-00
Number of channels: 2 channels
Input type: Accelerometer, speed sensor, displacement sensor
Input range: ±5 V, ±10 V
Sensitivity: 10 mV/g
Frequency range: 2 Hz ~ 20 kHz
Operating temperature range: -40℃ ~ +85℃
Overall dimensions: 176mm x 89mm x 32mm
Specifications:

Comply with IEC 61131-2 standard
Dustproof and waterproof rating IP65
Seismic class 2g
Application field:

centrifuge
pump
compressor
Steam turbine
dynamo
