Application Scenarios
At a Gulf Coast combined-cycle power plant, the 3500/15 rack protecting the 280 MW gas turbine began reporting intermittent “Power Supply Fault” alarms during evening peak load. The root cause was traced to a degraded 115M7750-01 whose internal filtering capacitors had lost capacitance after 17 years of continuous service—allowing DC bus ripple to induce false vibration trips. Because the plant had previously stocked a genuine 115M7750-01 as a strategic spare, the maintenance team powered down the rack (the redundant AC PIM in the upper slot was not installed, so a controlled shutdown was required), replaced the failed module, and restored protection within 45 minutes. The turbine was back online before the next dispatch cycle, avoiding a forced outage penalty estimated at $90,000.
This incident illustrates the core pain point the 115M7750-01 addresses: in a 3500 Machinery Protection System, the PIM is the single entry point for all electrical power feeding the monitoring modules that watch over multi-million-dollar rotating assets. When the 115M7750-01 degrades, the entire protection system—API 670 compliant vibration, thrust, eccentricity, and speed monitoring—is at risk. Having a verified genuine 115M7750-01 in stock transforms a potential multi-hour crisis into a sub-hour board swap. For plants operating gas turbines, steam turbines, compressors, and large motors where unplanned downtime costs tens of thousands of dollars per hour, a tested spare 115M7750-01 is not optional—it is a business continuity imperative.
Parameter

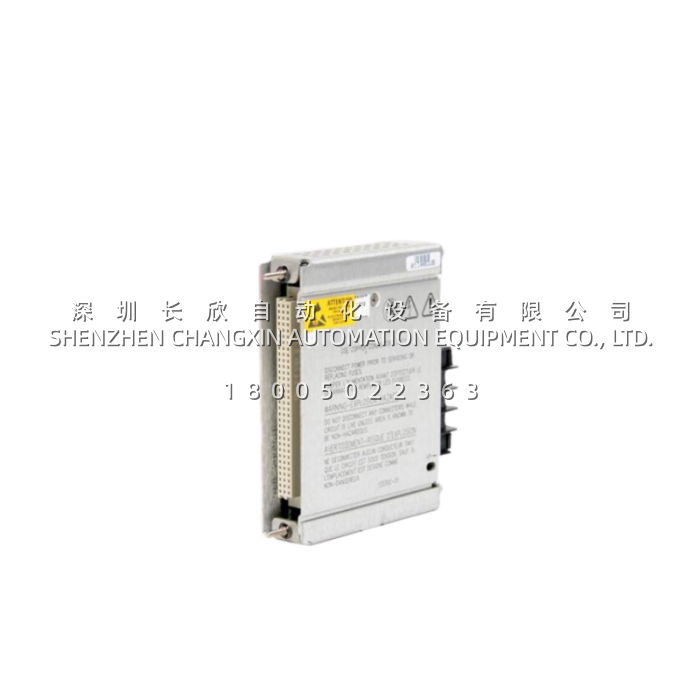

| Main Parameters | Value/Description |
|---|---|
| Product Model | 115M7750-01 |
| Manufacturer | Bently Nevada (Baker Hughes) |
| Product Category | High Voltage DC Power Input Module (PIM) |
| Compatible System | Bently Nevada 3500/15 Machinery Protection System |
| Paired Power Supply | 114M5329-01 (High Voltage DC Power Supply) |
| Input Voltage Range | 88-140 VDC |
| Maximum Input Current | 2.5 A |
| Input Frequency | DC (no AC input accepted) |
| Module Type | Half-height, rear-inserted into associated power supply |
| Slot Requirement | Designated left-side slot of 3500 system rack |
| Redundancy Support | Yes — dual PIM configuration (primary in lower slot, backup in upper slot) |
| Hot-Swappable | Yes — when a second power supply is installed |
| Status Indicator | “Supply OK” LED for real-time power health diagnostics |
| Overvoltage Protection | Fuse opens on PIM (replaceable fuse 129M0198) |
| Undervoltage Protection | No damage to supply or PIM |
| Isolation | Industrial-grade input-to-output isolation |
| Environmental Adaptation | Conformal-coated PCB for harsh industrial environments |
| Operating Temperature | -30 °C to +65 °C (-22 °F to +149 °F) |
| Storage Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Humidity | 95%, non-condensing |
| Dimensions (H × W × D) | 120.7 × 25.4 × 114.3 mm (4.75 × 1.0 × 4.5 in) |
| Weight | 0.34 kg (0.75 lb) |
| Compliance | CE, RoHS; EMC Directive 2014/30/EU; LV Directive 2014/35/EU; DNV GL and ABS maritime approvals; cNRTLus, ATEX/IECEx hazardous area options |
| Compatibility Note | NOT compatible with Legacy 3500 High Voltage DC PIMs |
💡 The 115M7750-01 is exclusively a high voltage DC input module. For AC-powered sites, the universal AC PIM (106M1081-01) must be used instead. Mixing legacy and current-generation PIMs in the same rack is not supported — both slots must use the current 3500/15 generation.
Technical Principles and Innovative Values
- Innovation Point 1: Half-Height Modular Architecture for Redundant Power. The 115M7750-01 adopts Bently Nevada’s half-height form factor, allowing two independent power input modules to occupy the left-side rack slots. The lower slot serves as primary, the upper as backup. When the 115M7750-01 in the primary slot is removed or fails, the backup seamlessly assumes full load — eliminating single-point power failures in API 670 machinery protection applications.
- Innovation Point 2: Hot-Swappable Design for Zero-Downtime Maintenance. When a redundant PIM is installed alongside the 115M7750-01, the module can be removed or inserted without disrupting rack operation. This allows maintenance teams to replace a faulty 115M7750-01 in a live protection system — a capability that is invaluable in base-load power plants and continuous-process facilities where shutdowns cost tens of thousands of dollars per hour.
- Innovation Point 3: Wide DC Input Tolerance for Industrial Grid Fluctuations. The 115M7750-01 accepts 88-140 VDC, a 52 V-wide input window that accommodates significant voltage sag and swell in industrial DC distribution networks. This is particularly critical in offshore platforms, battery-backed solar stations, and 125 VDC station power systems where voltage varies with charge state and load conditions.
- Innovation Point 4: Industrial-Grade Isolation and EMI Filtering. The 115M7750-01 incorporates heavy-duty filtering and input-to-output isolation to block high-frequency transients and electromagnetic interference. This ensures that “dirty” DC station power does not compromise the accuracy of vibration and displacement measurements — preventing false trips or data corruption in critical monitoring applications.
- Innovation Point 5: Replaceable Fuse with Automatic Overvoltage Protection. The 115M7750-01 features a user-replaceable fuse (part number 129M0198). On overvoltage events, the fuse opens to protect the module and downstream rack electronics. Undervoltage conditions cause no damage. This field-serviceable protection philosophy minimizes mean-time-to-repair during unplanned downtime events.
- Innovation Point 6: Extended Temperature Range for Harsh Environments. Rated for -30 °C to +65 °C operation, the 115M7750-01 thrives in environments that would destroy commercial-grade power modules. From Arctic pipeline stations to desert compressor shelters, the module’s conservative thermal design and conformal-coated PCB deliver >100,000 hour MTBF under normal operating conditions.
