Application Scenarios
Consider a food processing plant running multiple packaging lines. Traditional centralized VFD cabinets occupy valuable floor space in the control room, while long motor cables running to remote conveyors suffer from voltage reflection issues that can damage motor insulation over time. When a single drive fails, maintenance teams must troubleshoot inside a crowded cabinet while production stops—each minute of downtime costing hundreds of dollars .
The 284E-FVD6P0Z-25-CR-EMI solves these pain points directly. Plant engineers can mount one drive on each conveyor frame, eliminating the need for a dedicated MCC room. The shorter motor cables dramatically reduce the risk of voltage reflections that damage motor bearings and windings—a known problem in long-cable installations common in large factories .
In automotive body shop welding lines, where water and metal dust are constant challenges, the IP67-rated 284E-FVD6P0Z-25-CR-EMI survives washdown cycles that would destroy standard IP20 drives. Its integrated dual-port EtherNet/IP with DLR (Device Level Ring) support ensures network redundancy: if one node drops offline, the ring automatically reconfigures, and the rest of the production line keeps running .
Parameters

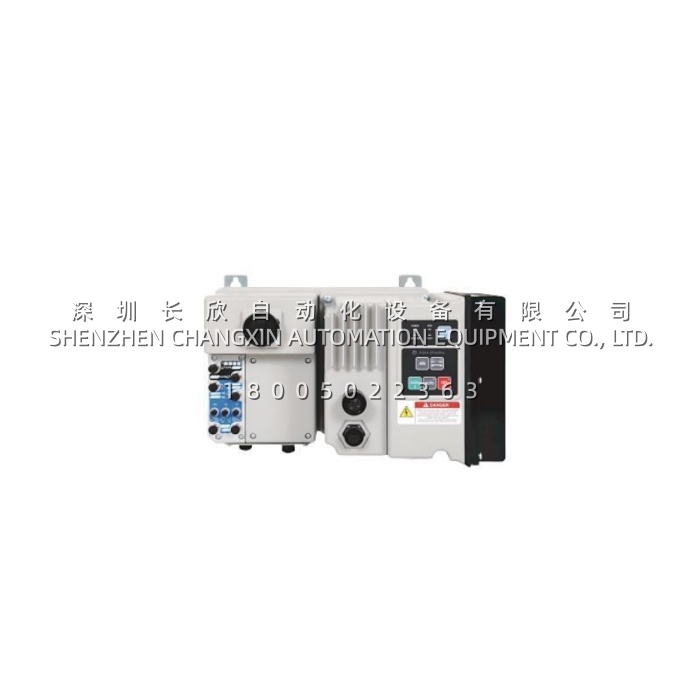

| Main Parameters | Value / Description |
|---|---|
| Product Model | Allen-Bradley 284E-FVD6P0Z-25-CR-EMI |
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Product Series | ArmorStart ST (Bulletin 284) |
| Product Category | Distributed AC Variable Frequency Drive |
| Rated Power | 2.2 kW (3.0 HP) @ 380-480V |
| Output Current | 6.0 A (Continuous) |
| Input Voltage | 380-480V AC, 3-Phase, 50/60 Hz |
| Control Voltage | 24V DC (External Supply) |
| Enclosure Rating | IP67 / NEMA Type 4X (Dust-tight, Watertight, Washdown) |
| Control Modes | Sensorless Vector Control (SVC), V/f Control |
| Communication | Embedded Dual-Port EtherNet/IP (Supports DLR) |
| Built-in Functions | Brake Chopper (-CR), C-Class EMI/RFI Filter (-EMI) |
| Overload Capacity | 150% for 60 seconds, 200% for 30 seconds (I²t Protection) |
| Short-Circuit Protection | 25A Rated Device |
| Safety Function | Safe Torque Off (STO), SIL 3/PL e |
| Operating Temperature | -20°C to +50°C |
| Dimensions (H×W×D) | ~287.5 × 444.38 × 266.9 mm |
| Weight | ~13.6 kg (Shipping ~19.1 kg) |
Technical Principles and Innovative Values
Innovation Point 1: Distributed On-Machine Architecture
Traditional VFDs are designed for cabinet mounting, requiring long motor cables that introduce voltage reflection and bearing current risks. The 284E-FVD6P0Z-25-CR-EMI eliminates this by mounting directly on the machine frame. This distributed approach reduces cable lengths significantly, minimizing the reflection phenomenon that can double voltage at the motor terminals and damage winding insulation over time. For system designers, this means no dedicated MCC room and up to 30-40% lower installation material costs compared to centralized drive cabinets .
Innovation Point 2: Integrated EMI Filtering and Braking
The “-EMI” suffix is not a marketing label—it means the drive meets C-class conducted emission limits per EN 61800-3 right out of the box. In environments like mining or steel mills where multiple VFDs share a common bus, this integrated filter suppresses both common-mode and differential-mode noise that can corrupt nearby PLC signals and sensor readings. The “-CR” brake chopper handles regenerative energy without external resistor boxes, simplifying cabinet-free operation .
