Technical Specifications
| Parameter Name | Value |
|---|---|

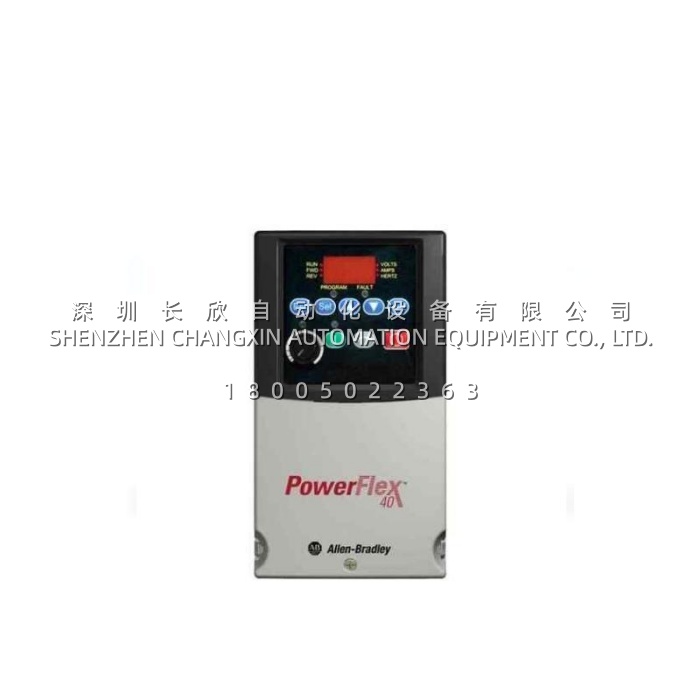

| Product Model | Allen-Bradley 22B-V5P0N104 |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Product Type | Adjustable Frequency AC Drive (Variable Frequency Drive) |
| Series | PowerFlex 40 |
| Input Voltage | 100-120V AC, Single-Phase (±10%) |
| Output Current | 5.0 Amps |
| Output Power | 0.75 kW (1.0 HP) |
| Output Frequency Range | 0-400 Hz (Programmable) |
| Control Method | Sensorless Vector Control / V/Hz Control |
| Enclosure Rating | IP20 Open Type |
| Dimensions (W×H×D) | 100 × 180 × 136 mm |
| Weight | 2.22 kg |
| Communication | RS485 (DSI Protocol) |
| Digital Inputs | 7 Logic Inputs |
| Analog Inputs | 2 (4-20mA, 0-10V) |
| Output Efficiency | 97.5% (Typical) |
| Brake IGBT | Integrated |
| Frame Size | Frame B |
Main Features and Advantages
Sensorless vector control: The Allen-Bradley 22B-V5P0N104 utilizes advanced sensorless vector control technology, delivering superior low-speed torque performance and precise speed regulation without the need for an external feedback device . This capability ensures consistent motor performance across the entire speed range, making the Allen-Bradley 22B-V5P0N104 particularly effective in applications requiring high starting torque or variable load conditions. The drive also supports standard V/Hz control, providing flexibility to match the specific demands of different motor types and applications .
Flexible I/O and communication: The Allen-Bradley 22B-V5P0N104 is equipped with a comprehensive I/O configuration including 7 digital inputs, 2 analog inputs, 1 analog output, 2 opto outputs, and 1 relay output, enabling extensive customization for various control schemes . Its built-in RS485 communication port supports the DSI protocol, facilitating integration with Rockwell Automation’s network infrastructure and enabling remote monitoring and control . The integrated brake IGBT enhances the Allen-Bradley 22B-V5P0N104’s capability in applications requiring rapid deceleration or frequent starts and stops .
Compact and robust design: The Allen-Bradley 22B-V5P0N104 features a space-saving Frame B design with IP20 enclosure rating, making it suitable for panel mounting in industrial environments . With a typical efficiency of 97.5%, the drive minimizes energy losses and operating costs . The built-in keypad interface provides intuitive local programming and diagnostics, enabling quick setup and troubleshooting without external tools. Comprehensive protective features including motor overload protection (150% for 60 seconds), overcurrent protection, and over/under voltage trip protection ensure reliable operation and safeguard both the and connected motors from damage .
