Application Scenarios
A specialty packaging machine builder in the Midwest had deployed dozens of 1398-DDM-075 drives across its installed base since the late 1990s, controlling the rotary knife axis on high-speed pouch filling lines. When one drive failed after 18 years of continuous three-shift operation, the OEM faced a familiar dilemma: migrate the entire control architecture to a modern servo platform—requiring new motor feedback cables, a different communication card in the PLC, and a complete re-tune—or source a tested spare of the original 1398-DDM-075.
The decision was straightforward. The 1398-DDM-075 accepted the existing parameter file from the machine’s backup, bolted into the same enclosure footprint, and communicated with the legacy PLC over the same RS-232/RS-485 interface. The rotary knife was back in production within three hours. For the OEM, the value of the 1398-DDM-075 was not measured in innovation—it was measured in the absence of disruption to a proven, profitable machine design.
Parameter

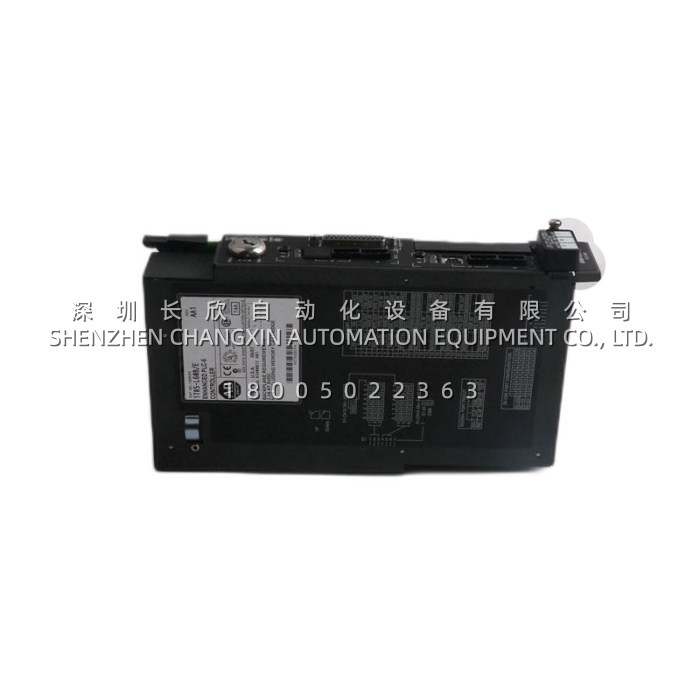

| Parameter | Value/Description |
|---|---|
| Product Model | 1398-DDM-075 |
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Product Category | Digital Servo Drive / Single-Axis Motion Controller |
| Product Line | ULTRA 200 Series |
| Input Voltage (AC) | 100–240 VAC RMS, 1-Phase or 3-Phase |
| Input Frequency | 47–63 Hz |
| AC Input Current | 30 A RMS (nominal) |
| DC Bus Voltage | 141–339 VDC |
| Continuous Output Current | 15 A (1-Phase) / 35 A (3-Phase) |
| Peak Output Current | 50 A (1-Phase) / 75 A (3-Phase) |
| Continuous Power Output | 3 kW (1-Phase) / 7.5 kW (3-Phase) |
| Peak Power Output | 14 kW (1-Phase) / 20 kW (3-Phase) |
| Operating Temperature | 0–55 °C |
| Weight | Approximately 9.98 kg (22 lbs) |
| Communication | RS-232 / RS-485 (up to 32 drives on RS-485) |
| Product Status | Discontinued / Legacy |
Technical Principles and Innovative Values
- Innovation Point 1: Fully Digital Microprocessor Control Eliminating Analog Drift. Unlike the analog servo amplifiers that preceded it, the 1398-DDM-075 uses a microcontroller to manage current, velocity, and position loops in the digital domain . This means that once a machine is tuned, the gain and filter parameters are stored in EEPROM and do not drift with temperature, age, or component tolerance. For a production machine running the same motion profile day after day, this eliminates the periodic re-tuning that analog drives required—a maintenance burden that many plants accepted as inevitable until digital drives like the made it obsolete.
- Innovation Point 2: Single-Phase and Three-Phase Flexibility from One Hardware Platform. The accepts either 100–240 VAC single-phase or three-phase input, with correspondingly different output ratings . In a single-phase configuration, it delivers 3 kW continuous and 14 kW peak; switched to three-phase, those figures rise to 7.5 kW and 20 kW respectively . This flexibility meant a machine builder could use the same drive model for a lightly loaded single-phase auxiliary axis and a heavily loaded three-phase main axis, simplifying spare parts inventory and service training.
- Innovation Point 3: Integrated Shunt Regulation for Regenerative Energy Management. The includes an internal shunt regulator that dissipates regenerative energy returned from the motor during deceleration, preventing DC bus overvoltage faults . For applications with high-inertia loads or frequent stop-start cycles—such as indexing conveyors or rotary knives—this eliminates the need for an external braking resistor in many cases. The drive’s TB2 terminal block provides a connection point for an external shunt module when the internal dissipation capacity is exceeded, offering a defined upgrade path without drive replacement .
