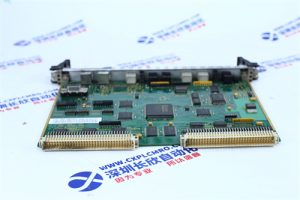

ABB 3BHB045647R0001 GVC736CE101
The ABB 3BHB045647R0001 GVC736CE101 is a dedicated power control and interface module designed to integrate with medium-voltage IGBT modules and drive systems, widely used in industries such as metallurgy, chemical processing, and power generation. In a large-scale water treatment plant’s pump drive system, this module serves as the communication hub between the main controller and the power conversion unit. It converts control signals from the PLC (e.g., speed setpoints, start/stop commands) into drive signals compatible with the IGBT modules, while simultaneously feeding back real-time operating data (current, voltage, temperature) to the upper-level system. This bidirectional data exchange ensures the pump motor operates at optimal efficiency (energy consumption reduced by 8-10% compared to traditional interface modules) and allows for remote monitoring of system health.
In renewable energy grid-connected systems, such as wind farm converters, the GVC736CE101 module synchronizes the operation of multiple power modules, ensuring balanced load distribution (current imbalance ≤2%) and stable grid connection. It features enhanced electromagnetic compatibility (EMC) design, enabling reliable operation in environments with high levels of electrical noise (up to 10V/m electromagnetic interference). The module supports hot-swap replacement, allowing maintenance personnel to replace it without shutting down the entire system, reducing maintenance-related downtime by over 40%. Additionally, its built-in diagnostic algorithms can detect signal anomalies and communication errors in real-time, triggering alarms to prevent potential system failures.
Product Parameters
- Electrical Parameters:
- Operating Voltage: 24V DC ±15% (compatible with standard industrial control power supplies)
- Power Consumption: ≤15W (under full load operation)
- Input Signal Range: 0-10V DC (analog), 24V DC (digital)
- Output Signal Range: 0-10V DC (analog), 24V DC (digital, max current 1A)
- Isolation Voltage: 2.5kV AC (between signal and power circuits, 1-minute withstand)
- Communication Parameters:
- Communication Interfaces: 2 x Ethernet (100BASE-TX), 1 x RS485
- Supported Protocols: Modbus TCP/IP, Profibus DP, ABB proprietary protocols
- Data Transmission Rate: Ethernet up to 100Mbps, RS485 up to 1Mbps
- Signal Processing Delay: ≤50μs (from input to output)
- Control Parameters:
- Control Signal Channels: 8 analog inputs, 16 digital inputs, 4 analog outputs, 8 digital outputs
- Sampling Rate: 1kHz (analog signals), 10kHz (digital signals)
- Diagnostic Coverage: ≥95% (including signal loss, short circuits, communication failures)
Product Specifications
- Dimensions: 180mm (length) × 120mm (width) × 60mm (height)
- Weight: Approximately 0.5kg
- Mounting Method: DIN rail mounting (35mm, compliant with EN 50022) or panel mounting with screws
- Interfaces:
- Power Interface: 2-pin terminal block (24V DC input)
- Signal Interfaces: Spring-loaded terminal blocks for analog/digital signals
- Communication Interfaces: RJ45 ports (Ethernet), terminal block (RS485)
