Technical Specifications

Main Features and Advantages

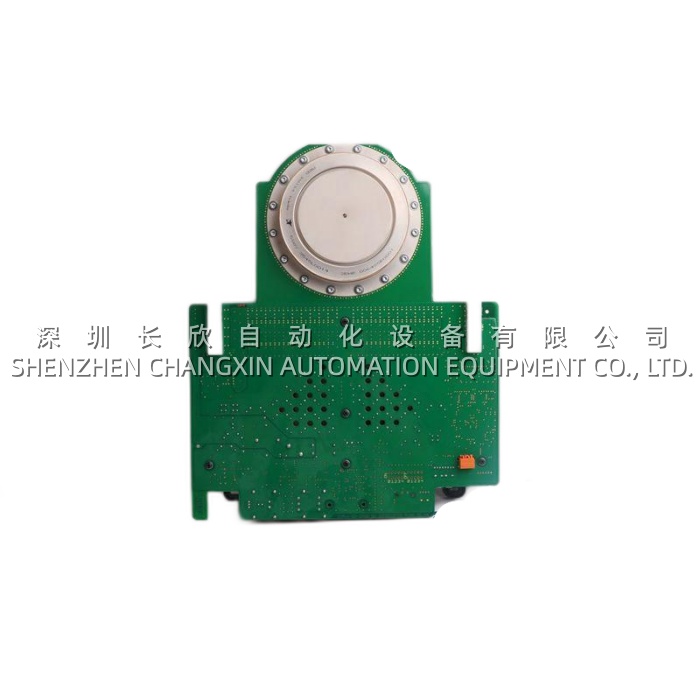

Precision Field Current Regulation: The ABB 3ADT314500R1001 SDCS-FEX-4 delivers precise, stable excitation current to the DC motor field winding, ensuring optimal torque control and speed stability across the entire operating range. This precision is particularly critical in applications such as rolling mills, where consistent torque output directly impacts product quality . The ABB 3ADT314500R1001 employs advanced control algorithms to maintain field current within tight tolerances, compensating for variations in temperature and supply voltage.

Multi-Configuration Flexibility: The ABB 3ADT314500R1001 supports four distinct application modes, offering exceptional versatility for system integrators. The ABB 3ADT314500R1001 can be configured as the FEX-25-Int internal field exciter for D5 modules up to 25A, or as an external exciter for DCF803-0016 (16A) and DCF803-0035 (35A) configurations, with a lower-current Term5A option also available . This adaptability means the ABB 3ADT314500R1001 can serve a wide range of motor sizes and drive configurations with a single hardware platform.

Robust Protection and Safety Integration: The ABB 3ADT314500R1001 incorporates comprehensive protection features including galvanic isolation between the high-power field circuit and low-voltage control electronics . This isolation protects sensitive drive control components from ground faults and voltage transients common in industrial environments. The ABB 3ADT314500R1001 also integrates safe shutdown functionality, enabling controlled field current interruption during abnormal conditions to protect both equipment and personnel .

Seamless Drive Integration: As an ABB-original component, the ABB 3ADT314500R1001 SDCS-FEX-4 integrates seamlessly with the DCS800 and DCS550 drive firmware, requiring minimal configuration for commissioning. The ABB 3ADT314500R1001 communicates with the main drive control board via dedicated interfaces (S800. D800 connections) , ensuring synchronized armature and field control for optimal motor performance. The module features clear status LED indicators for rapid diagnostics, allowing maintenance personnel to quickly assess its operational status.

Application Field

The ABB 3ADT314500R1001 SDCS-FEX-4 is deployed across heavy industries where DC motors remain the preferred choice for high-torque, precise speed control applications. In steel and aluminum rolling mills, the ABB 3ADT314500R1001 provides the field excitation needed for main mill drives and coiler motors, where consistent torque delivery is essential for achieving tight dimensional tolerances on finished products . The ABB 3ADT314500R1001 ensures these critical drives maintain stable operation under the extreme load variations common in hot and cold rolling processes.

In material handling and crane applications, the ABB 3ADT314500R1001 SDCS-FEX-4 supports hoist and trolley drives where precise acceleration and deceleration are required for safe, efficient load positioning. The ABB 3ADT314500R1001 also serves paper and pulp mills, where DC drives power winder and rewinder sections, with stable field excitation critical for maintaining uniform web tension and preventing sheet breaks . In mining applications, the ABB 3ADT314500R1001 supports conveyor drives and hoist systems, where its robust construction and protection features ensure reliable operation in dusty, demanding environments.

Facilities undertaking maintenance on aging ABB DCS500. DCS550. and DCS800 drive systems rely on the ABB 3ADT314500R1001 as an essential sparing component. As original modules become increasingly scarce, the ABB 3ADT314500R1001 provides a reliable replacement that preserves system performance . For OEMs and system integrators building new DC drive systems, the ABB 3ADT314500R1001 offers a field-proven, high-reliability field excitation solution compatible with modern DCS800 drive platforms.
