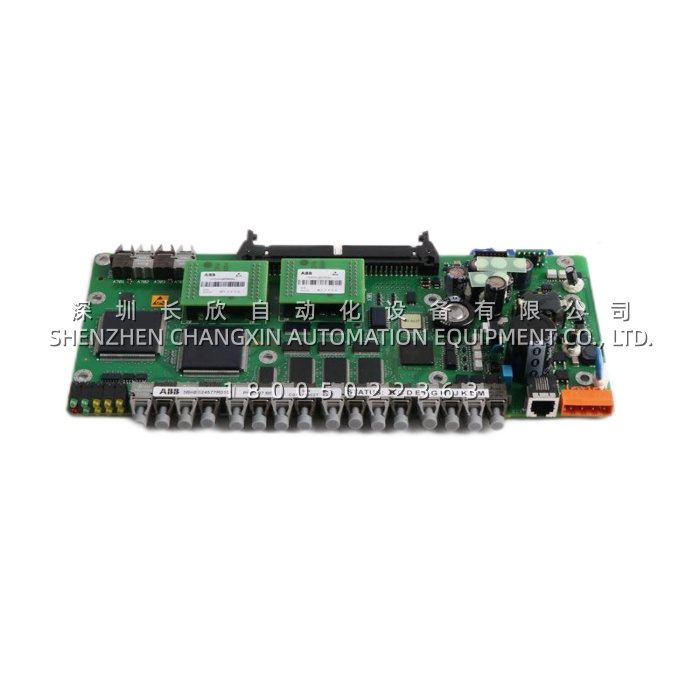

Application Scenarios
In a 600 MW coal-fired power unit in Eastern Europe, the original control architecture relied on early-generation 83SR04 and 83SR07 modules to manage the boiler feedwater valve, primary air damper, and burner tilt positioning. As the plant prepared for a life-extension program, the engineering team faced two pressing issues: the legacy modules were reaching end-of-life, and the increasing complexity of combustion optimization required more PID loops in the field. By migrating to the 83SR11E, the plant consolidated what previously required two separate modules into a single slot — the 83SR11E delivers 4 independent PID loops alongside 8 digital inputs and 8 relay outputs, with 4 high-precision analog inputs for transmitter feedback. During a scheduled turbine trip test, the 83SR11E demonstrated its value by executing the emergency shutdown sequence locally within the module, without waiting for the central DCS to arbitrate the logic — cutting the reaction time from tens of milliseconds to under 5 ms. This case underscores the core pain point the 83SR11E resolves: keeping safety-critical and precision control loops running in aging Procontrol P13/P14 installations where spare parts have become scarce and modernization budgets remain tight.
Parameter
| Main Parameters | Value/Description |
|---|---|
| Product Model | 83SR11E |
| Ordering Code | GKWE8559000200 (also GKWE855900R0200) |
| Manufacturer | ABB |
| Product Category | Stored-Program Analog & Binary Control Module |
| System Compatibility | ABB Procontrol P13 / Procontrol P14 DCS |
| Functional Units | 8 independent FUs (mixed digital + analog) |
| PID Loops | 4 independent configurable loops |
| Analog Inputs (AI) | 4 channels, 0/4–20 mA, high-precision acquisition |
| Digital Inputs (DI) | 8 channels, 24 V DC dry contact / NAMUR / 48 V DC active-passive |
| Digital Outputs (DO) | 8 channels, passive relay contacts, short-circuit protected |
| Analog Outputs (AO) | 0/4–20 mA direct actuator drive |
| CPU & Memory | 32-bit processor, 1 MB RAM + 1 MB Flash (EEPROM non-volatile) |
| Communication | Procontrol P13/P14 Station Bus (X11, 48-pin); Modbus RTU |
| Power Supply | 24 V DC (±10%) from system backplane, ≤ 20 W |
| Isolation | Channel-to-channel ≥ 2500 V AC; channel-to-system electrical isolation |
| Safety Certification | SIL3 per IEC 61508; CE |
| Diagnostics | Onboard LED (Run/Sim/Fault/Comms); remote diagnostic & fault upload |
| Operating Temperature | -25 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Dimensions (approx.) | 38 × 197 × 261 mm (6U, DIN 41612) |
| Weight (approx.) | 1.0 kg |
| Mounting | Procontrol P14/P13 cabinet slot, DIN 41612 backplane connector |
| Hot-Swap | Supported — automatic addressing on insertion, no system restart required |
Technical Principles and Innovative Values
- Innovation Point 1: Distributed Autonomous Control Architecture. Unlike a conventional I/O module that merely collects signals for the central processor, the 83SR11E carries its own 32-bit CPU and executes control logic locally. Each of the 8 functional units can run PID, sequencing, interlocking, or three-step control independently. This means that even if the upstream controller loses communication, the 83SR11E continues to regulate its assigned loop — a critical advantage for safety-instrumented functions in power and petrochemical applications.
- Innovation Point 2: Consolidated Hybrid I/O with 4 PID Loops. The 83SR11E integrates 4 AI, 8 DI, 8 DO, and AO channels with 4 fully independent PID loops in a single 6U slot. Compared to the earlier 83SR07 analog module, the 83SR11E adds two additional PID loops and significantly richer binary handling, allowing one module to replace what previously required two or three separate cards. This reduces backplane slots, wiring, and spare-parts inventory.
- Innovation Point 3: SIL3-Certified Safety Execution. Certified to IEC 61508 SIL3, the 83SR11E is qualified for use in emergency shutdown (ESD) and boiler protection circuits. The module performs continuous internal self-tests on CPU, memory, I/O channels, and communication integrity, reporting faults via both front-panel LEDs and the station bus — ensuring that a failed safety loop is never silently masked.
- Innovation Point 4: High-Voltage Channel Isolation. With ≥ 2500 V AC isolation between channels and between channels and the system side, the 83SR11E thrives in electrically noisy environments such as power plant switchyards, compressor stations, and steel mill drive rooms. This galvanic separation prevents ground loops and surge coupling from corrupting sensitive analog measurements.
- Innovation Point 5: Online Parameter Modification Without Loop Interruption. Engineers can modify PID parameters, setpoints, and limit values online through ABB’s PDDS programming environment while the loop remains in service. The 83SR11E stores its program in non-volatile EEPROM, so the updated control strategy survives power cycles and hot-swaps without re-download.
