Product Overview

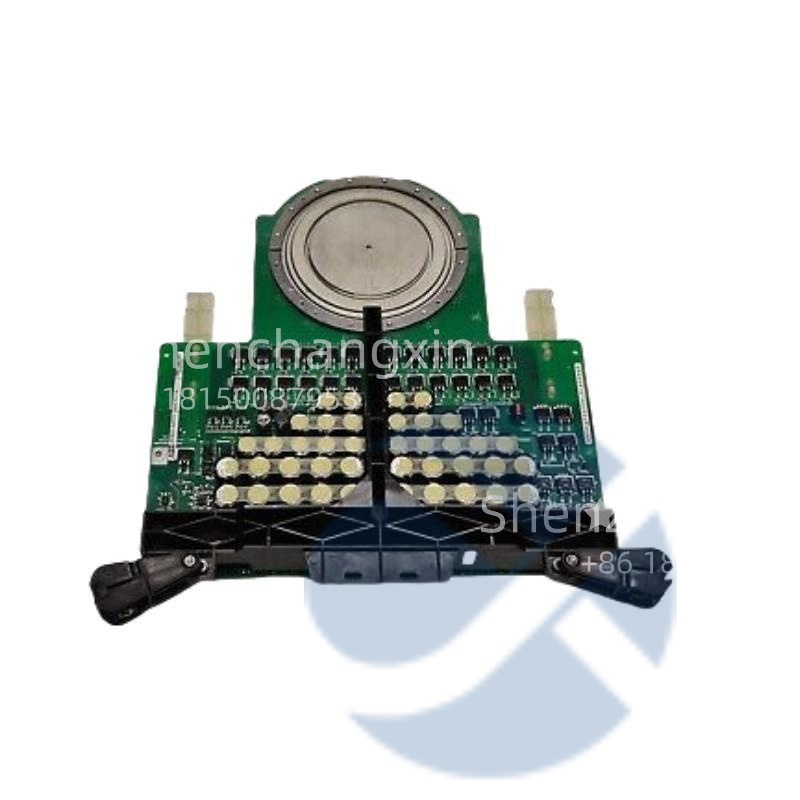

The ABB 5SHX2645L0004 3BHL000389P0104 is a high-power, high-voltage semiconductor device known as an Integrated Gate-Commutated Thyristor (IGCT). It represents a pinnacle of ABB’s power electronics technology, designed specifically for robust and efficient switching in medium-voltage, high-power applications. Unlike standard thyristors or IGBTs, the IGCT integrates a high-performance GTO (Gate Turn-Off) thyristor with an optimized, low-inductance gate drive unit into a single, compact “hard-drive” package. The ABB 5SHX2645L0004 is a critical component within the power stacks of large industrial drives, such as ABB’s flagship ACS 1000 medium-voltage AC drive, where it functions as the primary switching element, controlling the flow of electrical power to large motors with precision and reliability.
This specific device, also often identified by the internal designation 91A1. is built using a press-pack housing. This technology provides double-sided cooling, allowing for efficient heat dissipation directly from both the anode and cathode sides when clamped between large heatsinks. The ABB 5SHX2645L0004 3BHL000389P0104 is engineered for extreme durability, capable of handling very high blocking voltages and surge currents. Its core value lies in enabling highly efficient power conversion with minimal switching and conduction losses, which is paramount for the energy efficiency of multi-megawatt drive systems. As a consumable spare part in such critical infrastructure, the performance and authenticity of the 5SHX2645L0004 are non-negotiable, as it directly impacts the uptime, efficiency, and operational stability of large-scale industrial processes like those in mining, cement production, and oil & gas.
Main Features and Advantages
The ABB 5SHX2645L0004 IGCT distinguishes itself through a combination of high power density, ruggedness, and efficiency that is ideal for the most demanding medium-voltage drive applications.
Superior Power Handling and Efficiency: The core advantage of the IGCT technology embodied in the 5SHX2645L0004 is its ability to handle very high voltages and currents with remarkably low conduction losses. It operates as a thyristor in the on-state, resulting in a lower forward voltage drop compared to IGBTs of a similar rating. This translates directly into higher efficiency, especially in high-power applications where even a fraction of a percent reduction in losses leads to massive energy savings and reduced cooling requirements over the system’s lifetime.
Rugged Press-Pack Design and Robustness: Housed in a press-pack, the device offers excellent thermal performance and superior reliability. The double-sided cooling allows heat to be extracted from both sides of the silicon wafer simultaneously, enabling a more compact power stack design. This housing is also extremely robust, capable of withstanding high mechanical pressure and thermal cycling stress. The ABB 5SHX2645L0004 3BHL000389P0104 is designed for fault tolerance, capable of handling high short-circuit currents, which enhances the overall reliability and availability of the drive system.
Integrated, Low-Inductance Gate Drive: A key feature of the IGCT is its integrated gate drive. The gate unit is connected to the GTO thyristor with minimal inductance, enabling extremely fast and uniform turn-off of the entire silicon wafer. This “hard drive” capability allows for snubberless or low-snubber operation in many circuits, simplifying the inverter design, reducing component count, and increasing power density. The integrated design of the 5SHX2645L0004 ensures optimal matching between the thyristor and its driver, guaranteeing reliable and consistent switching performance.
Application Field
The ABB 5SHX2645L0004 3BHL000389P0104 is a specialized component with a primary, mission-critical role in high-power industrial electrical infrastructure. Its dominant application is within the power conversion sections of medium-voltage variable frequency drives (VFDs). Specifically, it is a cornerstone component of ABB’s ACS 1000 series of medium-voltage drives. In these drives, multiple 5SHX2645L0004 IGCTs are used to construct the inverter stage, which converts the fixed-frequency, fixed-voltage input power into a variable-frequency, variable-voltage output to precisely control the speed and torque of large three-phase induction or synchronous motors.
This application is fundamental across heavy process industries where controlling massive pumps, fans, and compressors leads to tremendous energy savings and process optimization. In the mining industry, these drives power grinding mill circulators, ore conveyor systems, and mine hoists. In cement production, they control critical fans and kiln drives. The oil & gas sector relies on them for mainline pipeline compressors and large pumping stations. The power generation industry uses them in boiler feed pumps and induced draft (ID) / forced draft (FD) fans. The ABB 5SHX2645L0004 is therefore not just a spare part; it is a vital element enabling the efficient, reliable, and controllable operation of the largest rotating machinery that forms the backbone of global industrial production. Its performance directly affects system efficiency, motor control precision, and ultimately, plant uptime.
Related Products
5SHY3545L0009 / 5SHY3545L0010: Other common IGCT types used in ABB medium-voltage drives, often with different voltage/current ratings.
5SNA1200E330100: An ABB HiPak IGBT module, representing a different semiconductor technology used in newer MV drives like the ACS 2000.
ACS 1000 Drive Cabinet: The complete drive system in which multiple 5SHX2645L0004 IGCTs are installed as part of the inverter stack.
Gate Unit Board (for IGCT): The dedicated driver board that provides the control signals to the gate of the 5SHX2645L0004; it is a separate but closely associated component.
Snubber Module: Often used in conjunction with IGCTs to limit voltage transients during switching; a key associated component in the power stack.
Water-Cooled Heatsink: The specific cooling plate assembly onto which the press-pack 5SHX2645L0004 is clamped for thermal management.
3BHL000389P0001 / 3BHL000389P0002: Other article numbers for related IGCT devices or kits within the same family.
5SXE10-0187: An example of a fuse or other protection device used in series with the IGCT in the power circuit.
Installation and Maintenance
Pre-installation preparation: Handling and installing the ABB 5SHX2645L0004 is a high-precision task that must be performed by qualified personnel following strict safety procedures (Lock-Out/Tag-Out) and the official ABB drive maintenance manual. Before starting, ensure the drive is completely isolated from all power sources (AC line, DC bus) and discharged. The work area must be clean, static-safe, and tools must be non-marring. Carefully remove the old IGCT, noting the exact orientation, serial number (if logged), and the position/location of any insulating pads, thermal grease, and pressure pads. Thoroughly clean the mating heatsink surfaces with approved solvents. Inspect the new ABB 5SHX2645L0004 3BHL000389P0104 for any shipping damage. Verify the correct application of thermal interface material (grease or pad) as specified in the manual. The device must be placed in the correct orientation (anode/cathode).
Maintenance recommendations: The ABB 5SHX2645L0004 itself has no user-serviceable parts. Maintenance revolves around condition monitoring and preventive replacement. Regularly monitor the drive’s diagnostics for signs of increasing thermal resistance, which can indicate deteriorating thermal contact. During scheduled downtime, check the mechanical clamping pressure of the IGCT stack as specified by the manufacturer, as creep or relaxation of materials can occur over time. Inspect for signs of overheating on the housing or terminals. The most critical maintenance activity is predictive: based on operational statistics, thermal cycling, and manufacturer guidelines, planning the proactive replacement of IGCTs like the 5SHX2645L0004 before they fail in service, thereby avoiding unplanned production outages. Always keep a tested spare on hand.
Product Guarantee
We understand the critical role the ABB 5SHX2645L0004 3BHL000389P0104 IGCT plays in your high-value drive systems. Therefore, we are committed to supplying only 100% authentic, factory-original ABB semiconductors. Every 5SHX2645L0004 unit we provide is sourced through authorized and certified channels, ensuring full traceability and compliance with ABB’s stringent manufacturing standards. Prior to dispatch, each device undergoes a rigorous multi-point inspection process that includes verification of external markings, serial numbers, and a comprehensive visual inspection for any physical imperfections. While full-power testing is not feasible outside a factory setting, we perform essential electrical parameter checks where possible to validate basic integrity. We back this commitment with a standard product warranty and provide all necessary documentation for your records. Our technical support team is available to assist with compatibility verification and provide guidance based on the extensive application knowledge of this crucial component, ensuring you receive a reliable and guaranteed part for maintaining your drive’s operational excellence.
