Technical Specifications
| Parameter | Value |
|---|---|

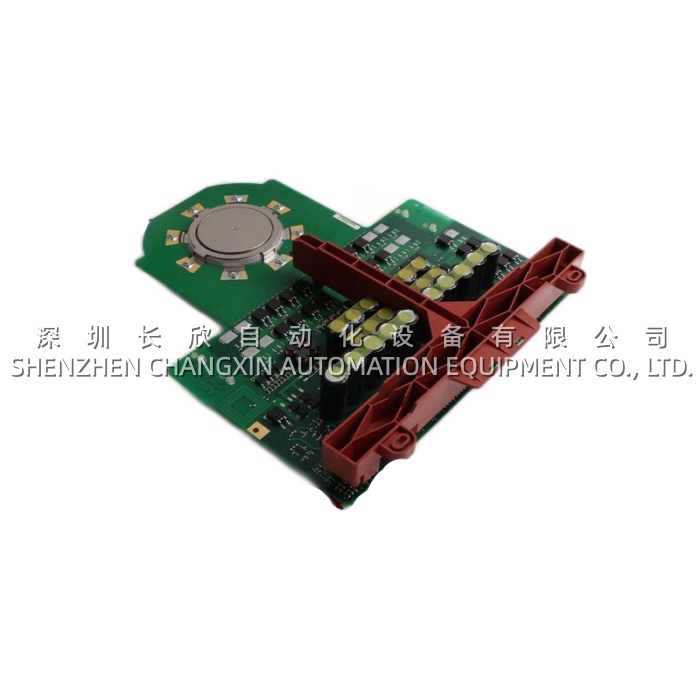

| Product Model | ABB 3BHE021083R0101 (XVC770 BE10, Coated) |
| Manufacturer | ABB |
| Product Type | HVD-series High-Voltage Digital Output / Interface Board (Coated) |
| Output Channels | 16 channels, high-side switching |
| Output Voltage / Load | 24 V DC (high-side drive) |
| Max Output Current | 0.5 A / channel |
| Isolation (ch-ch & ch-backplane) | ≥ 1500 VAC |
| Response Time | ≤ 5 ms |
| Max Switching Frequency | 100 Hz |
| On-State Voltage Drop | ≤ 2 V (low-side return) |
| Insulation Resistance | ≥ 10 MΩ @ 500 V DC |
| PCB Construction | 6-layer industrial-grade multilayer PCB |
| Coating | Acrylic conformal coating, 50–100 μm (full-board) |
| Protection Functions | Per-channel over-current, short-circuit, over-temperature; fault channel auto-isolates |
| Indicators | Power LED (green), Output status LED (yellow/channel), Fault LED (red) |
| Backplane Bus | Dedicated HVD / AC 800M backplane connector |
| Hot-Swap | Supported on compatible carriers |
| Power Consumption | ≤ 4 W |
| Operating Temp. | –20 °C to +60 °C |
| Storage Temp. | –40 °C to +85 °C |
| Humidity | 5%–95% RH, non-condensing |
| Vibration / Shock | IEC 60068-2-6 / IEC 60068-2-27 |
| Board Dimensions (approx.) | 260 × 200 × 45 mm (coated variant, with mounting brackets) |
| Weight | ≈ 0.95 kg |
| Compatible Systems | ABB AC 800M, Symphony Plus, UNITROL 6000, ACS HV Drive cabinets |
| IP (board alone / in cabinet) | IP20 / IP54 (when rack/cabinet sealed) |
Main Features and Advantages
Conformal-coated for corrosive environments:
The defining trait of the ABB 3BHE021083R0101 (XVC770 BE10) Coated is the full-board acrylic conformal layer (50–100 μm), applied after SMT and wave-solder, then cured. This seals solder joints, SMD edges and via barrels against creeping corrosion from H₂S (pulp & paper), Cl⁻ (coastal / desal), fertilizer off-gassing and cement-plant alkali dust. In a plain-board plant where a 5-year-old DO card might show green whiskers on the high-side driver FETs, the ABB XVC770 BE10 coated version typically runs 10+ years in the same bay. For plants under IEC 60721-3-3 class 3C2/3C3 (corrosive) rating, coated is not optional — it’s the specified SKU.
16-channel high-side drive with per-channel fault isolation:
Each of the 16 outputs on the ABB 3BHE021083R0101 is a high-side switch, not a low-side sink. This matters for AC 800M / UNITROL 6000 wiring conventions where field negatives are often tied to PE/MEN and the switching element lives on the positive leg. When a contractor coil shorts or a wiring error dumps 48 V onto a 24 V channel, the ABB XVC770 BE10 detects over-current and over-temperature, drops just that channel, and flags the red fault LED plus a backplane diagnostic bit — the other 15 channels keep driving breaker trips, annunciators and solenoid valves. That granularity prevents a single field fault from silencing the whole DO card, which in an excitation cubicle could mean losing both “close field breaker” and “open main breaker” command paths simultaneously on an un-fault-tolerant card.
Hot-swap on compatible carriers:
When the ABB 3BHE021083R0101 is seated on a hot-swap-capable HVD or AC 800M carrier (typical in AC 800M high-availability racks and Symphony Plus nodes), the card can be pulled and re-inserted without killing the 24 V auxiliary or disturbing neighbour cards. In a 24/365 turbine or compressor house, this turns a DO-card swap from a planned shutdown item into a coffee-break job. The ABB XVC770 BE10 negotiates with the backplane on insertion — power-sequencing, FPGA config load, then channel enable — so there’s no “blind” milliseconds where all 16 outputs float.
6-layer PCB with ≥1500 VAC channel isolation:
The ABB 3BHE021083R0101 uses a 6-layer stack-up: two outer signal/solder-mask, two inner power planes (24 V and logic 3.3 V), two inner signal. Channel-to-channel and channel-to-backplane isolation is tested ≥1500 VAC, which blocks the dv/dt spikes that travel back from inductive loads (contactor coils, relay release arcs) into the logic side. In ACS HV drive cabinets where the same rack holds this DO card next to IGBT gate-driver supplies and 4–20 mA AI cards, that isolation stops a contactor-coil arc from jittering the AVR sampling or tripping the AC 800M CPU watchdog.
Diagnostic visibility:
Three LED classes — green power, yellow per-channel state, red fault — give bay-side electricians instant health readout without a laptop. Over the backplane, the ABB XVC770 BE10 publishes per-channel open-load / short / over-temp flags into AC 800M Control Builder or Symphony Plus diagnostic trees, so a failed contractor coil shows up as a maintenance work-order auto-generated event rather than a “why didn’t the lube-oil pump start?” post-mortem.
