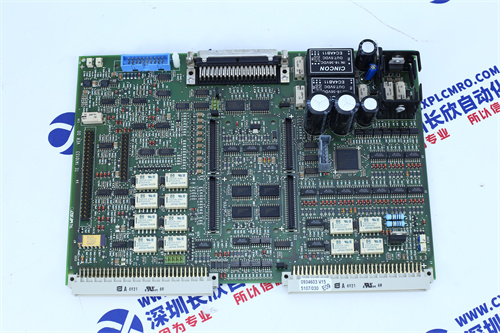

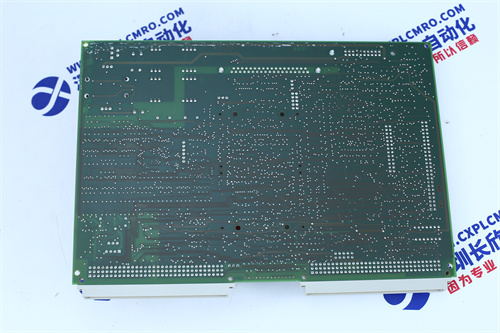

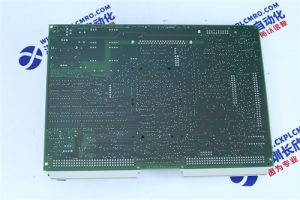

A-B 354792-A01 REV 02 0208

Product name: **A-B 354792-A01 REV 02 0208 module

** Product Description: **A-B 354792-A01 REV 02 0208 module is A 16-channel, 12-bit analog input module that can be used to measure voltage, current, temperature and other signals. The module uses a 12-bit ADC and a high-precision, low-noise analog front end to deliver superior measurement accuracy and performance.

Product parameters:

Analog input: 16 channels, 12 bits, 100 kSPS
Voltage measurement range: ±10 V
Current measurement range: ±20 mA
Temperature measurement range: -20 ℃ ~ 85 ℃
Noise: 10 μVrms
Offset: 10 μV
Specifications:

Size: 100 mm × 100 mm × 25 mm
Weight: 0.25kg
Power Supply: 24 V DC
Operating temperature: -40 ℃ ~ 85 ℃
