Application Scenarios
In a large-scale water treatment facility, operators must continuously monitor dozens of process variables: chlorine residual, turbidity, pH, flow rates, and tank levels across multiple treatment stages. Traditional analog input architectures require numerous lower-channel-count modules, consuming rack space and creating wiring complexity that increases both installation cost and failure points. The Control Technology 901B-2555-A addresses this challenge directly, condensing 16 differential input channels into a single-wide module slot while maintaining the precision required for regulatory compliance and process safety. When a pump station experiences electrical noise from variable frequency drives, the module’s differential architecture and 1500 VDC isolation ensure that pressure transducer readings remain accurate, preventing false alarms or missed low-pressure conditions that could compromise treatment effectiveness .
Parameter

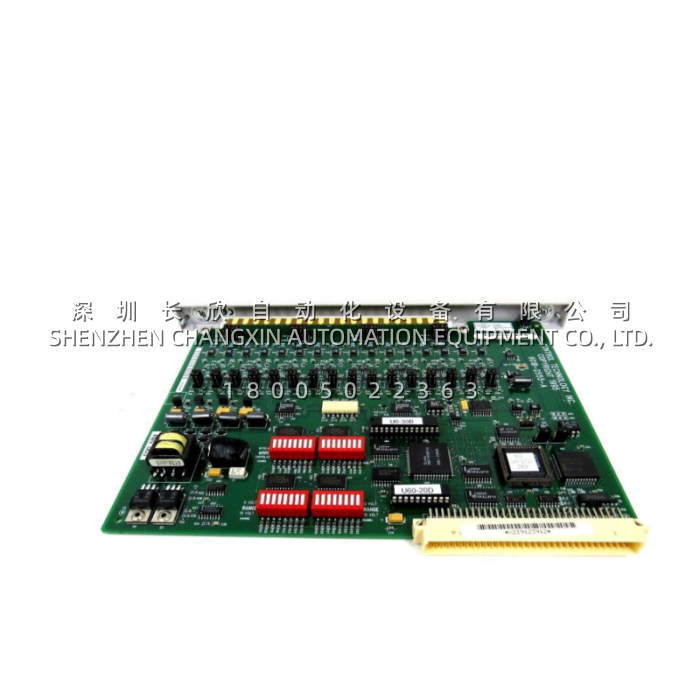

| Parameter | Value/Description |
|---|---|
| Product Model | 901B-2555-A |
| Manufacturer | Control Technology Inc. (CTI) |
| Product Category | 16-Channel Differential Analog Input Module |
| Compatible Platforms | CTI 2500 Series, SIMATIC 505 I/O Base |
| Input Channels | 16 differential analog inputs |
| Signal Range (Unipolar) | 0–5 VDC, 0–10 VDC, 0–20 mA |
| Signal Range (Bipolar) | -5 to +5 VDC, -10 to +10 VDC, -20 to +20 mA |
| Update Time (No Filtering) | 5.9 ms |
| Update Time (Filtering) | 8.2 ms |
| Accuracy (Voltage @ 25°C) | 0.057% of full scale |
| Accuracy (Current @ 25°C) | 0.2% of full scale |
| Resolution (Unipolar/Bipolar) | 14 bits plus sign / 13 bits plus sign |
| Common Mode Rejection | >86 dB @ 60 Hz |
| Channel-to-Backplane Isolation | 1500 VDC |
| Input Overrange Protection | 500 V |
| Backplane Power Consumption | 5.0 W |
| Operating Temperature | 0°C to 60°C |
| Module Size | Single-wide |
| Agency Approvals | UL, UL-C, FM (Class I, Div 2) |
Technical Principles and Innovative Values
Innovation Point 1: High-Density Differential Input Design Reduces System Footprint. The Control Technology 901B-2555-A provides 16 differential analog input channels in a single-wide module, dramatically reducing hardware footprint and per-point cost in a control rack. This density is especially valuable in data-intensive applications like environmental monitoring, batch processing, or large pumping systems where dozens of temperatures, pressures, and flows must be tracked simultaneously .
Innovation Point 2: Advanced On-Board Signal Processing Offloads Controller Burden. The 2555-A series supports configurable scaling, alarming, peak/valley hold, digital filtering, and averaging functions on a per-channel basis. These features are downloaded from the PLC via a simple configuration routine, eliminating the need for analog alarm blocks and special function programs within the controller. This reduces program complexity, shortens scan time, and allows any replacement module to be configured automatically from the PLC .
Innovation Point 3: Robust Isolation and Noise Immunity for Harsh Environments. The Control Technology 901B-2555-A incorporates 1500 VDC isolation between field channels and the PLC backplane, safeguarding sensitive control electronics from field wiring surges, ground loops, and transient faults. The differential input architecture provides 140 VRMS channel-to-channel common mode rejection, effectively suppressing noise from variable frequency drives, motors, and other industrial interference sources .
Innovation Point 4: Fast Update Time for Tight Control Loops. With a full-channel scan time of only 5.9 ms (no filtering), the Control Technology 901B-2555-A provides near-real-time data to the controller, essential for tight PID loops and fast-responding processes. The module achieves exceptional accuracy of 0.057% of full scale in voltage mode and 0.2% in current mode at 25°C, with repeatability of 0.008% .
