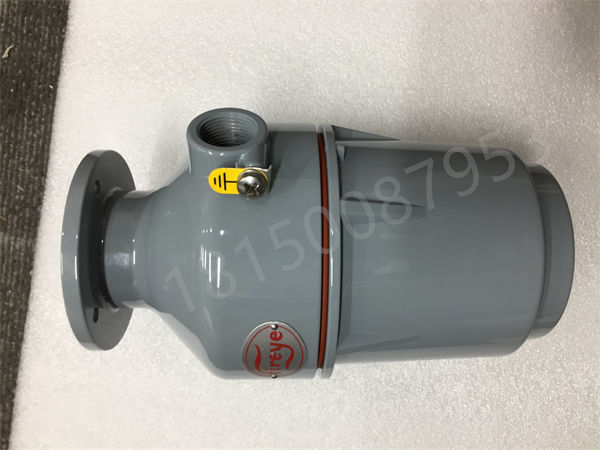

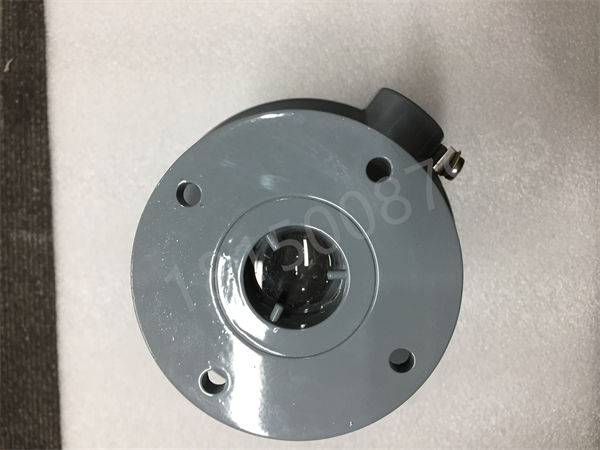

FIREYE flame detector 85UVF1-1CEX This is an explosion-proof model. Manager Westerzhang can help you with a complete set of accessories, including probe flange, heat insulation pipe, quartz window, tee, pair wire, companion flange (including universal joint), and cable. We can also provide SIL3 certification. This brand is quite unique and usually used in the chemical industry. When inquiring, please provide the end user name. Thank you

TYPE 85UVF/IRF Integrated flame detector with Internal Relay

Operation and programming of PHOENIX flame detection probe

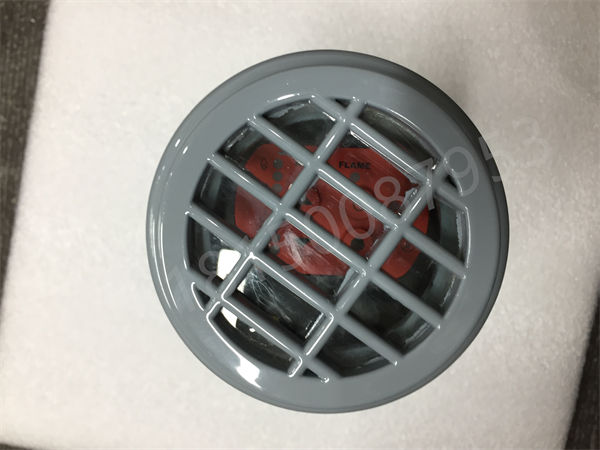

Keyboard appearance:

Phoenix flame detection is equipped with information status display LED lights and 4 keys to program the probe components.

The specific description is as follows:

Status display: 12 LEDs

Ready (1 yellow)

Learn Target Flame (1 yellow)

Learn Background Flame (1 yellow)

Flame On/Off (1 yellow)

Flame Strength (8 orange) (also used for password input)

Function keys

UP/DOWN

The purpose of the UP/DOWN key is to select password input before starting programming. Start the “learning” or storage process for the target flame or background flame.

TARGET FLAME SELECT

This button is used to initiate the “learning” or storage process for the target flame. All necessary threshold values for fire/no fire identification will be automatically set.

Background FLAME SELECT (optional) If there is a background flame, the user will want the probe to recognize it and distinguish it from the target flame. This selection button is used to initiate the “learning” or storage process for the background flame. It will automatically change the “no fire” threshold (set in the target flame selection program) to exclude the influence of background flames.

summary

Phoenix 85UVF/IRF series flame detector produced by Fireye is a microprocessor device that applies solid-state flame detection sensors. It has an internal relay that can automatically set the ON/OFF threshold, so remote amplifiers or flame switches can be cancelled.

The Phoenix flame detection probe detects the modulation amplitude (i.e. flame flicker characteristics) generated by the target flame to detect a wide range of frequencies. In the probe setting program, the amplitude of the target flame will be automatically stored along with the optimal ON/OFF value. The appropriate sensor gain will also be automatically selected. The probe combines all self diagnosis and electronic self check functions.

The Phoenix 85UVF/IRF is divided into multiple models due to different levels of certification for detection components and applicable hazardous areas. Please refer to Table 1 Overview Table and Product Certification on page 3.

The Phoenix 85UVF/IRF flame probe requires 24Vdc power supply and is connected to a cable through an 8-pin electrical quick disconnect connector (QD model). There is also a standard 4-20mA flame intensity signal output.

Note: The wiring form of the QD model has been changed to an electrical quick disconnect connector connection, replacing the original probe model with a 3-meter long cable. The QD probe (corresponding cable models 59-546-X) can be directly applied to Class I Division 2 hazards
