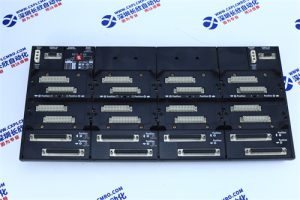

80190-380-02-R 80190-378-52/08
Product Names
In the context of industrial automation and process control, the 80190-380-02-R and 80190-378-52/08 modules are industrial-grade functional modules, likely belonging to a series of process interface or control modules. “80190” serves as the core series identifier, linking them to a family of products with similar design architectures and application orientations; the subsequent numerical segments (“380-02-R” and “378-52/08”) are specific model differentiators, indicating variations in interface configurations, functional features, or performance parameters. “R” in 80190-380-02-R may denote “Relay” or a specific revision, while “/08” in 80190-378-52/08 could reference a channel count or hardware variant. Collectively, they can be understood as “80190 Series Industrial Process Interface Modules (Models 380-02-R and 378-52/08)”, emphasizing their role in connecting field devices and control systems.
Product Descriptions
80190-380-02-R Module
The 80190-380-02-R module is a specialized interface component designed for industrial process control systems, primarily used in industries such as chemical processing, water treatment, and food and beverage production. Its core function is to act as a bridge between analog field devices (e.g., pressure transmitters, level sensors) and digital control systems (e.g., PLCs, DCS), facilitating accurate signal conversion and reliable data transmission.
The module excels in processing analog input signals, with a focus on converting 4-20mA current signals from field sensors into digital data compatible with control systems. It incorporates precision signal conditioning circuitry, including low-pass filters and isolation transformers, to minimize noise and interference common in industrial environments. For example, in a water treatment plant, the module processes signals from pH sensors and turbidity meters, ensuring that fluctuations from nearby pumps or motors do not corrupt the measurement data, thus maintaining pH control accuracy within ±0.1 units.
Equipped with relay-based digital outputs, the 80190-380-02-R module can also execute control commands from the host system, such as activating solenoid valves or alarm systems. The relays provide galvanic isolation (≥2500V AC) between
