Application Scenarios
In a large-scale food and beverage packaging facility, operators faced challenges with an aging HMI that had become unresponsive, causing production bottlenecks and frequent errors. By replacing the outdated unit with the Siemens 6AV6542-0CA10-0AX1, the plant immediately benefited from its responsive membrane keys and clear STN display, allowing operators to swiftly navigate menus and adjust packaging parameters. The intuitive interface and tactile feedback reduced operator input errors by over 30%, while the integrated PROFIBUS DP communication ensured seamless integration with existing S7-300 controllers, quickly restoring and stabilizing the production line .
The 6AV6542-0CA10-0AX1 addresses critical industrial pain points:
- Need for a rugged and reliable HMI in harsh, high-vibration environments where touchscreens may be impractical
- Requirement for legacy system upgrades, allowing 1:1 replacement of older OP27 panels with minimal downtime
- Demand for efficient alarm management and recipe handling to support complex, multi-product manufacturing processes
- Integration with existing SIMATIC S7 and S5 control systems via MPI, PROFIBUS DP, and other protocols
Parameters

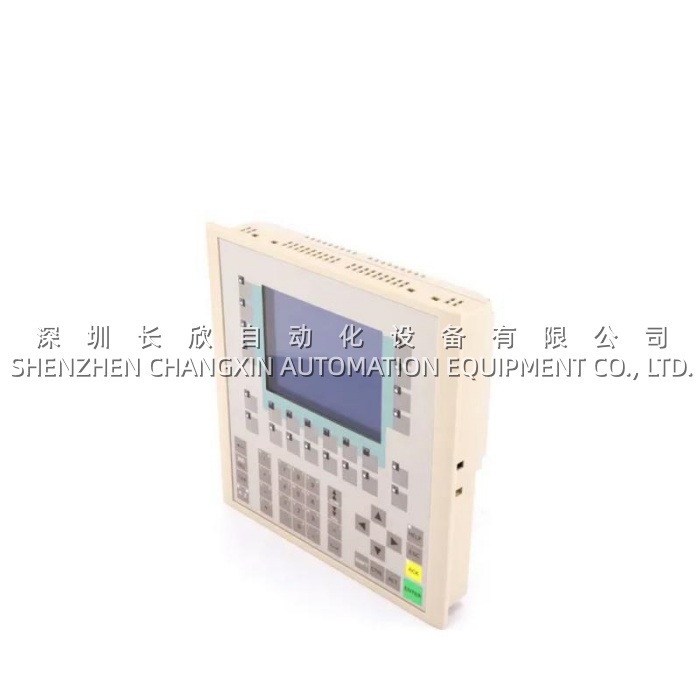

| Main Parameters | Value/Description |
|---|---|
| Product Model | 6AV6542-0CA10-0AX1 |
| Manufacturer | Siemens |
| Product Category | SIMATIC HMI Operator Panel |

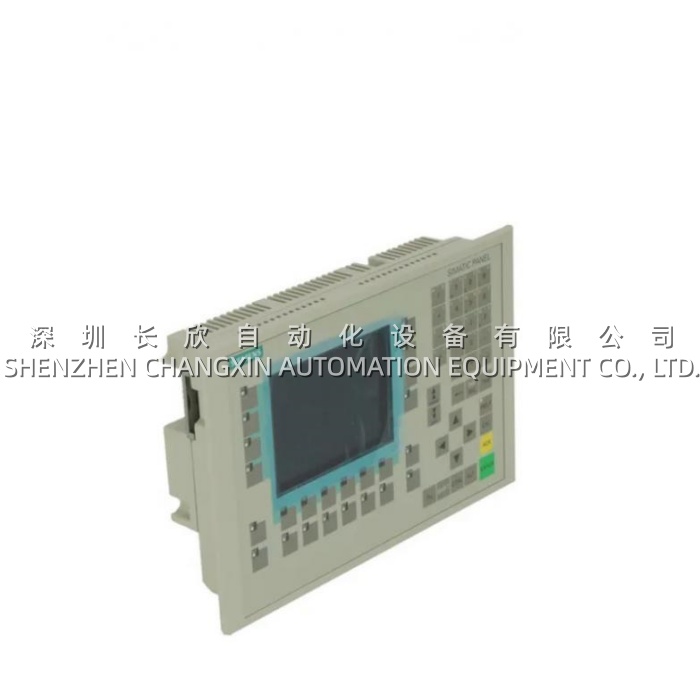

| Product Type | OP 270 6″ (Key Operation) |
| Display Type | 5.7″ STN (CSTN) Color Display |
| Display Resolution | 320 x 240 Pixels (QVGA) |
| Colors | 256 |
| Backlight | CCFL (Cold Cathode Fluorescent Lamp) |
| Membrane Keyboard | 36 System Keys, 24 Configurable Function Keys (18 with LEDs) |
| Configuration Memory | 2 MB (for user data and projects) |
| Communication Interfaces | 1x RS232, 1x RS422/485 (MPI/PROFIBUS DP up to 12 Mbit/s), 2x USB |
| Expansion Slot | 1x CF Card Slot (for recipe data, project backup) |
| Supply Voltage | 24 V DC (20.4 – 28.8 V) |
| Current Consumption | 0.6 A typical |
| Front Protection | IP65 (when properly mounted) |
| Rear Protection | IP20 |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -20°C to +70°C |
| Weight | Approx. 1.945 kg |
| Configuration Software | ProTool V6.0 or WinCC flexible 2008 |
Technical Principles and Innovative Values
Innovation Point 1: Dual-Input Architecture for Enhanced Reliability
The Siemens 6AV6542-0CA10-0AX1 uniquely combines a 5.7-inch STN color display with a comprehensive membrane keypad, offering operators both visual feedback and tactile control. This hybrid design is particularly advantageous in environments where touchscreens are susceptible to contamination or accidental activation, ensuring reliable operation even when operators are wearing gloves .
Innovation Point 2: High-Performance Communication Suite
Equipped with MPI and PROFIBUS DP interfaces supporting up to 12 Mbit/s, the 6AV6542-0CA10-0AX1 ensures rapid data exchange with SIMATIC controllers . Its 24 configurable function keys with LEDs can be directly mapped as PROFIBUS DP input peripherals, enabling real-time control without additional I/O hardware .
Innovation Point 3: Powerful On-Board Functionality
As part of the 270 series, the 6AV6542-0CA10-0AX1 supports up to 4,000 alarms, 300 recipes, and 20 archives, making it a powerhouse for data-intensive applications . Its 2 MB configuration memory provides ample space for complex projects, while the integrated vector graphics and 8-curve display fields offer sophisticated visualization capabilities .
Innovation Point 4: Flexible Data Management and Expansion
The integrated CF card slot is a key differentiator, providing external storage for recipe data, project backups, and system firmware, simplifying maintenance and system upgrades . Additionally, USB interfaces support “hot plug-in” of peripherals like barcode readers and printers, enhancing operational flexibility .
