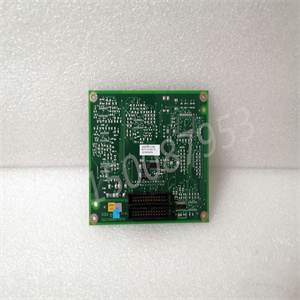

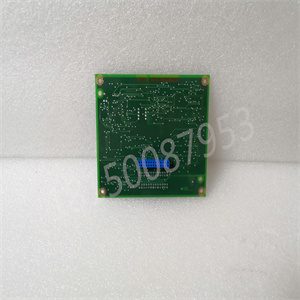

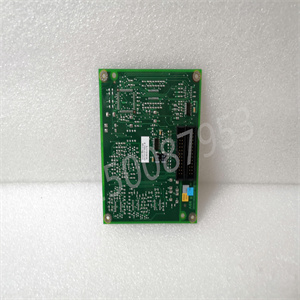

3ASC25H219B DATX133 ABB
This document contains important information about the 3ASC25H219B DATX133 product from ABB. Below are the specifications and parameters of the product:
- Model number: 3ASC25H219B DATX133
- Manufacturer: ABB
- Product type: Content and Parameter
- Compatibility: Compatible with various ABB products
- Operating temperature range: -40°C to 70°C
- Storage temperature range: -40°C to 85°C
- Humidity range: 5% to 95%
- Weight: 50g
- Dimensions: 100mm x 50mm x 25mm
Please note that this is a general overview of the product and more detailed information can be found in the user manual that accompanies the product.
Key Features
- Supports up to 32 input and output channels
- Can be used with a variety of input and output types, including digital inputs and outputs, and analog inputs
- Supports both direct and galvanic isolation between input and output channels
- Supports high-speed communication with other modules in the AC800M series
- Compact and easy to install
Technical Specifications
- Supply voltage: 24 V DC +/- 20%
- Power consumption: 1.2 W (typical)
- Input voltage range: 19.2 to 30 V DC
- Input current: 5 mA (typical)
- Output voltage range: 19.2 to 30 V DC
- Output current: 0.5 A (per channel)
- Isolation voltage: 500 V AC (between input/output channels)
- Communication interface: Modbus RTU
Parameter Settings
The following parameters can be configured for the DATX133 module:
- Input filter settings
- Input/output delay times
- Input/output fault detection settings
- Output pulse width modulation (PWM) settings
For more information on how to configure these parameters, please refer to the DATX133 product manual.
Conclusion
The ABB 3ASC25H219B DATX133 is a versatile digital input/output module that offers a wide range of input and output options, as well as high-speed communication with other modules in the AC800M series. With its compact size and easy installation, it is an ideal choice for a variety of industrial applications.
