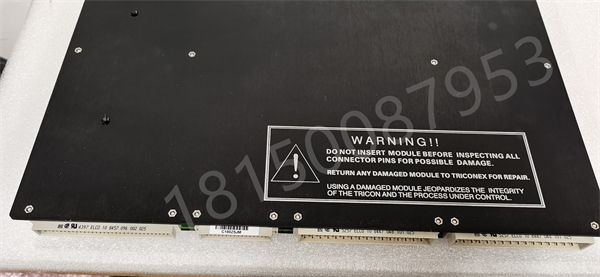

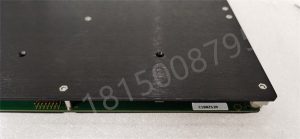

3625 TRICONEX

After the packaging process, the TRICONEX 3623 automation module PLCIC chip must undergo strict testing to ensure product quality. Therefore, chip appearance testing is an essential and important step, which directly affects the quality of IC products and the smooth progress of subsequent production processes.

With the continuous innovation of chip technology and chip packaging technology, both chip area and packaging area are developing towards smaller, lighter, and thinner sizes. The number of pins increases, the spacing between pins decreases, and the difficulty of chip appearance inspection continues to increase. Traditional manual inspection methods are no longer sufficient to meet the high requirements of inspection and cannot adapt to mass production and manufacturing.

With the rapid development of artificial intelligence, replacing traditional manual inspection with machine vision inspection has become the mainstream development trend of IC chip appearance inspection. This method has been widely used due to its fast detection speed, high detection accuracy, and easy maintenance.

The case user is a manufacturer of IC chip appearance inspection equipment. In order to achieve quality inspection of 150 IC chips at the same time, high requirements have been put forward for the quality and performance of the core computing unit in their equipment – industrial computers

In order to achieve efficient, fast, and accurate detection of multiple IC chips simultaneously, and to break the inefficient situation of traditional single detection of IC chips, it is necessary to have strong data processing capabilities; 2. In order to achieve external compatibility with multiple functional modules, it is necessary to have strong scalability; In order to ensure the stable and fast transmission of detection data, it is necessary to have stable computing power and network environment.Source control solutionBased on user needs, Source Control has provided CIS-DQ47-FA01 standard 4U rack mounted box computers, which have the following advantages
