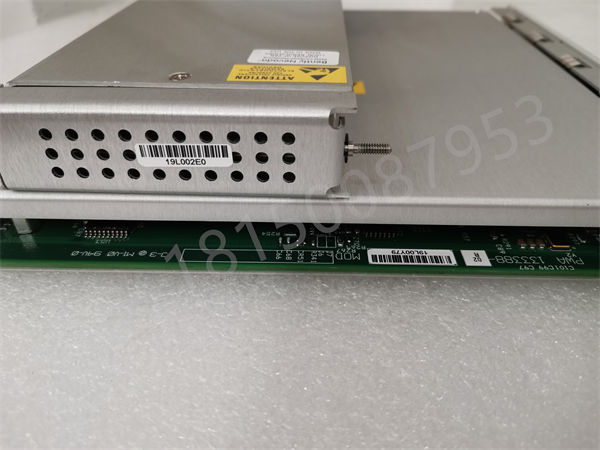

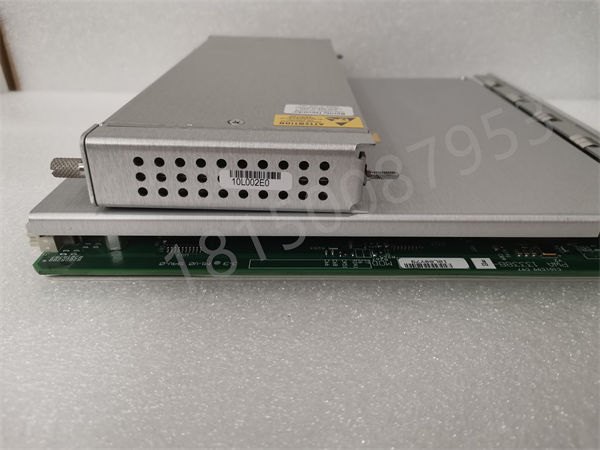

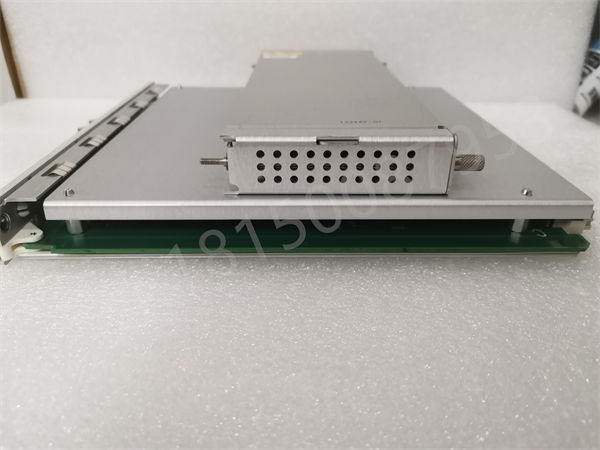

350050-01-00 BENTLY
Bentley 3500/25-01-01-00 Wind Turbine Status Monitoring System
July 15, 2010-3701/60 GE Wind Turbine Condition Monitoring Solution provides continuous online monitoring of wind turbine units using complex signal processing algorithms and machine operation status. It is part of ADAPT. wind, which is a standard state monitoring solution for General Electric wind turbines and can be easily deployed on most manufacturers’ devices.
As part of Condition Based Maintenance (CBM), the 3701 Wind Condition Monitoring (CM) solution enables wind turbine owners to be aware of defects several months before a fault occurs. Based on the scale of wind farms, General Electric’s CBM solution can save turbine owners hundreds of thousands to millions of dollars in revenue losses annually.
Turbine owners can save costs through various means, including reducing unplanned crane services and optimizing maintenance. Turbine owners will reduce unnecessary turbine shutdowns and production losses. The 3701/60 GE Wind Turbine Monitoring Solution is a powerful and flexible system that can be used as a network distributed collection of independent protection systems, interoperability systems, or as an integrated part of the control and instrumentation package of the machine OEM. General Electric’s CBM includes features and advantages that other systems do not have. The processor has all the functions required for monitoring the status of wind turbine units, including signal regulation, alarms, configuration, speed input, and control system communication
he channel measurement types include acceleration and velocity. Complex signal processing algorithms extract dozens of measured values and health indices from each accelerometer point, and can be customized based on specific bearing and gearbox characteristics. The 3701/60 GE Wind Turbine Monitor Protection and Status Monitoring Solution is specifically designed for continuous and permanent monitoring of wind turbine generators. It is designed specifically for monitoring applications that require extremely high reliability and availability.
The applications that the 3701/60 solution will handle include but are not limited to:Tower swayMain bearingGearbox – All internal bearings, gear engagement, and particle monitoringGenerator bearings
Special configuration or modification of standard solutions can be solved through Bently Nevada’s customized product engineering. The 3701/60 solution includes digital communication capability to connect to GE machinery management software through Ethernet connection using GE proprietary protocols. In addition, this solution provides extensive communication capabilities for all monitoring values and states, in order to integrate with process control and other automation systems using Ethernet TCP/IP communication capabilities. The supported protocols include:Ethernet Global Data (EGD)Proprietary GE protocol (for communication with 3701 system software and Mark VIe control system)Industry standard Modbus protocol over TCP
