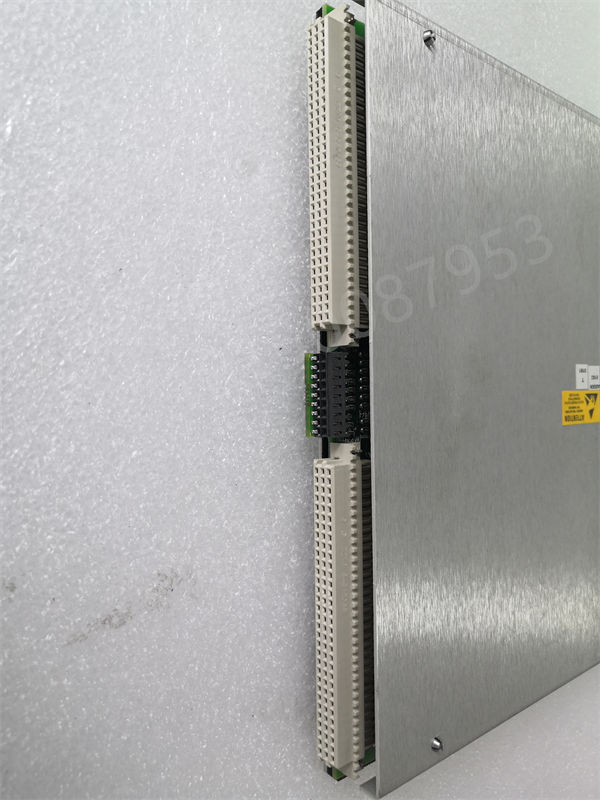

350042M BENTLY
The 3500/42M is a Proximitor Seismic Monitor component developed by Bently Nevada. It is a four channel monitor with proximity and seismic sensor inputs. It compares the adjusted signal with a user programmable alarm and adjusts the signal to generate vibration and position readings. The 3500 rack configuration software can be used to program each channel to monitor and report radial vibration, thrust position, REBAM, acceleration, differential expansion, eccentricity, speed, and other parameters.
BENTLY NEVADA 3500/42M Features:
The monitoring channels are set in pairs and can perform up to two specified functions simultaneously. For example, channels 1 and 2 can perform one function, while channels 3 and 4 perform another or the same function.
The Proximitor seismic monitor protects the machine by real-time comparing monitoring parameters with selected alarm setpoints, triggering alarms. It notifies operations and maintenance employees of information related to critical machine information.
According to the arrangement, each channel typically adjusts its input signal to generate a set of static values. You can establish alarm setpoints for any current static value and set danger setpoints for any two of them.
Use the rack configuration software to set the alarm level for any value measured by the monitor and set the danger setpoint for any two values measured by the monitor. For each measurement value, an alarm can be set within the range of 0 to 100% of full scale. When the full scale range exceeds the sensor range, the set point is limited by the sensor range.
BENTLY NEVADA BENTLY 3500/42M Technical Features:
BENTLY NEVADA 3500/42M Input:
Receive signals from one to four proximity, acceleration, or speed sensors.
Power consumption is 7.7 watts.
ENTLY NEVADA 3500/42M Output

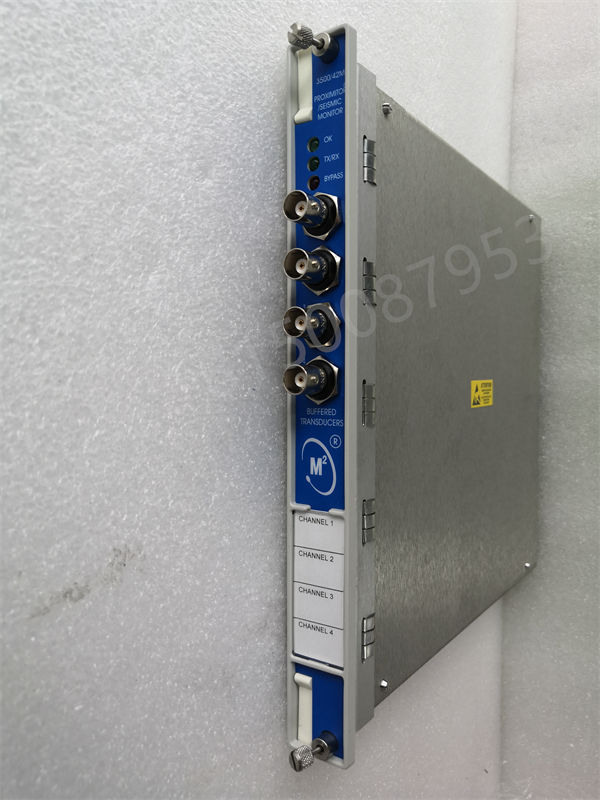

When the Monitor module is working properly, the OK LED lights up.
When the Seismic Monitor module is connected to other modules in the 3500 rack, the TX/RX LED will light up.f the seismic monitor is in bypass mode, the bypass LED will light up.Buffer sensor: Each channel has its own coaxial connector in front of the display. Each connector has built-in short-circuit protection.550 Ohm Output ImpedanceAxis power supply -24 VdcResolution 0.3662A/bitSensor power supply -24 VdcAbsolute output impedance 300 ohms
