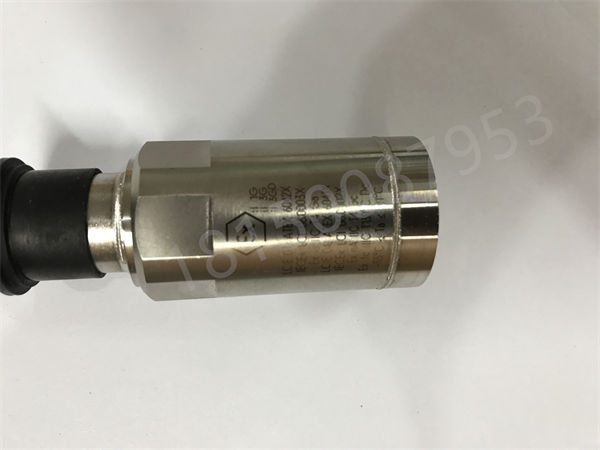

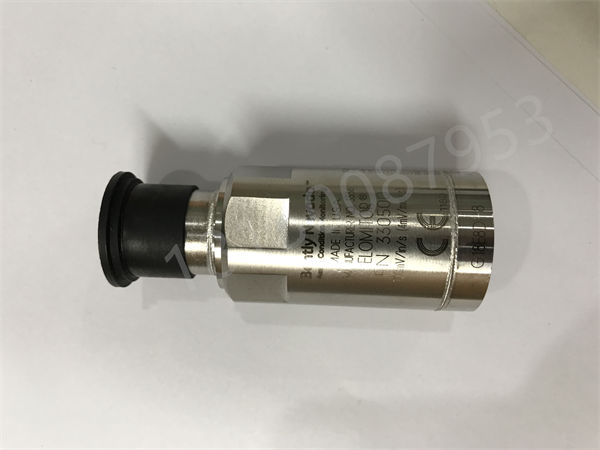

330500-02-00 BENTLY

Bently 3500 configuration requirements for bearing vibration sensors of Bently 330500-02-00 motors: Each key motor set is equipped with a dedicated Bently 3500 frame; Each Bentley 3500 rack is equipped with redundant 3500/15 power modules; Each Bentley 3500 rack is equipped with a 3500/22M transient data interface module (RJ45 network interface); Each unit is equipped with corresponding 3500/25 Keyphasor modules within the Bentley 3500 framework; The shell vibration and motor bearing vibration require corresponding 3500/42M monitor modules to be configured.

In addition, Bentley 330500-02-00 motor bearing vibration sensors can also be equipped with vibration monitors 1900/65 and 2300/20-00-00 or 2300/20-CN-00

The Bentley probe 330500-02-00 is a specialized, high gain eddy current sensor system used to directly observe the outer raceway of rolling bearings. When the rolling unit passes through the observation range of the sensor, micro inch defects can be observed. Compared to the speed and acceleration sensors installed on the casing, BENTLY REBAM in the United States is a better rolling bearing monitoring method for mechanical protection and condition monitoring purposes.

BENTLY Portable Instrument in the United States

BENTLY Snapshot for Windows * CE Technical Specifications and Ordering Information (Chinese) (328KB)

BENTLY Snapshot for Windows * CE is a handheld portable data acquisition and analyzer from BENTLY, which can be used in conjunction with our System 1 mechanical management software platform. The portable data acquisition and analysis system has two integrated channels and one phase and speed input channel. It weighs less than 4 pounds and is one of the lighter and easier to use data collection tools on the market.

BENTLY Snapshot Balance, USA

The BENTLY Snapshot Balance software in the United States is a new software that runs on a portable data acquisition device called the Bentley Snapshot for Windows * CE in the United States. This software is specifically designed to balance non critical machinery operating under a single operating condition. Complex multi component units with multiple balanced resonant speeds, as well as rotating equipment such as pumps, motors, fans, and fans in most factories, can be balanced using the BENTLY Snapshot Balance from the United States. The BENTLY Snapshot Balance Wizard in the United States can help users gradually complete balancing tasks from machine configuration to implementation of solutions. The software also comes with a vector calculator to help distribute balanced weight and provide vector deviation compensation for eddy current probe measurements.
