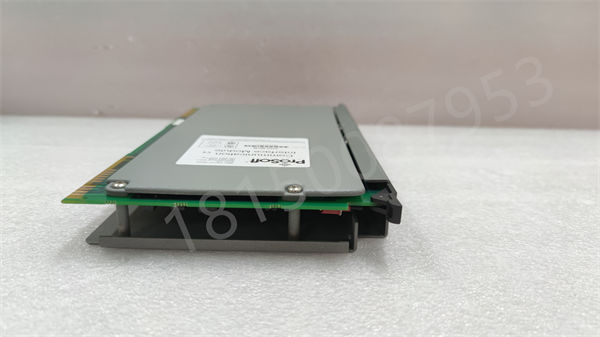

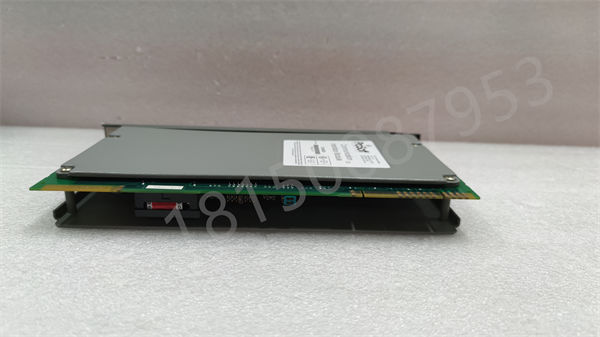

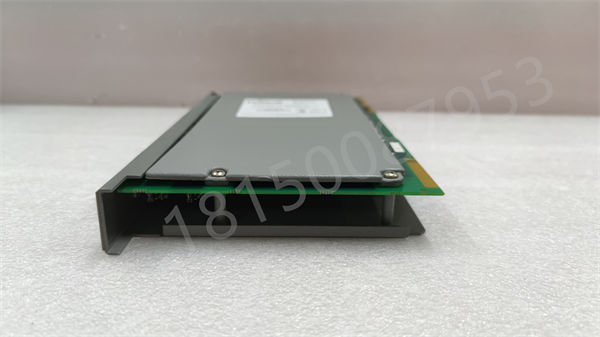

3100-MCM PROSOFT

The ProSoft powerful communication module PROSOFT 3100-MCM in the United States supports complete master specifications according to IEC 61158. Non cyclic parameter data can be transferred to level 1 or level 2 DPV1 services, allowing the processor to easily communicate with devices supporting the PROFIBUS DPV0/V1 protocol from the slave station

This module serves as the input/output module between the PROFIBUS network and the SLC processor. The data is transmitted from the processor to the I/O asynchronous PROFIBUS network, and this module uses proprietary backplane technology to achieve powerful data exchange with the SLC processor.

ProSoft Powerful Communication Module PROSOFT 3100-MCM General

Specifications:

Single slot -1746 backplane compatible (local or only expanding I/O racks. Remote racks not supported)

The module is recognized as an input/output module and can access the data transfer M0/M1 file between the processor memory processor and the module

Ladder logic is used for data transmission modules and processors. Contains sample ladder files

ProSoft Powerful Communication Module PROSOFT 3100-MCM in the United States Functional Specifications:

The INRAx PDPMV1 PROFIBUS master module is used as a data storage device on the backplane for transmitting input and output data between PROFIBUS devices and processors in the PROFIBUS network scanner.

• ProSoft Configuration Builder software through the included Master Busview configuration interface (see PSWPCB)

• GSD file import library for the project

• Monitoring and modifying process data and DPV1 non cyclic data

• Compatible devices for multi point connections between PROFIBUS DPV1 network and other networks

• Automated project documentation

Automatic bus parameter calculation

Online slave diagnosis

Support for all standardized baud rates, 12 Mbps

Support for Extended Diagnostic Data (DPV1)

Multiple hosts can be placed in one rack

CRC checksum determines the reliability of the slave configuration processor

• Main status LED indicator for operation, network communication, main token retention, and network configuration

FDT/PROFIBUS master station transmission including communication software (see PSWC-PDPM)
