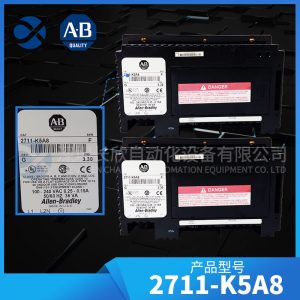

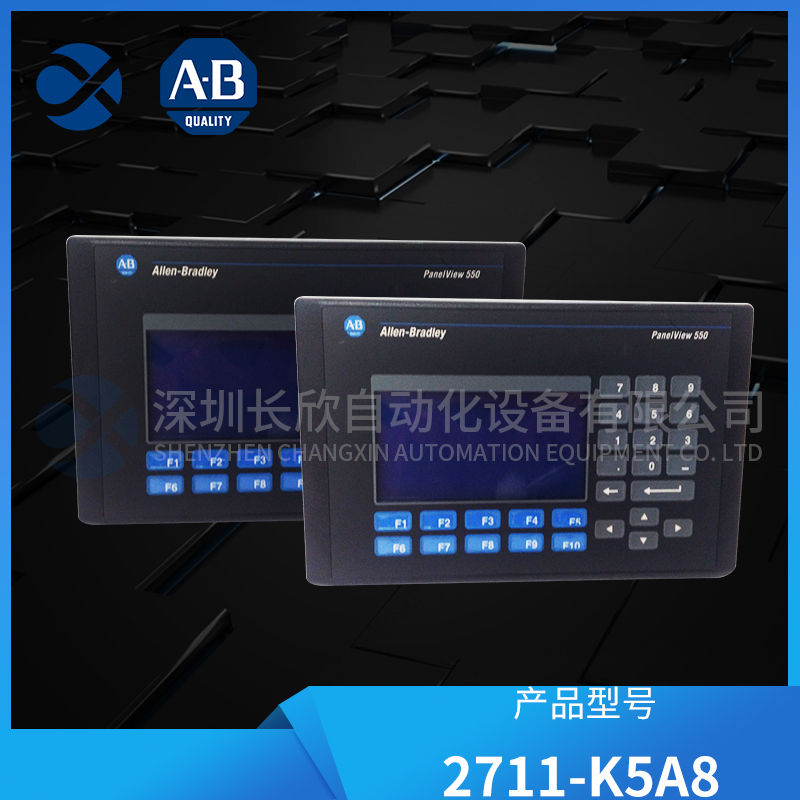

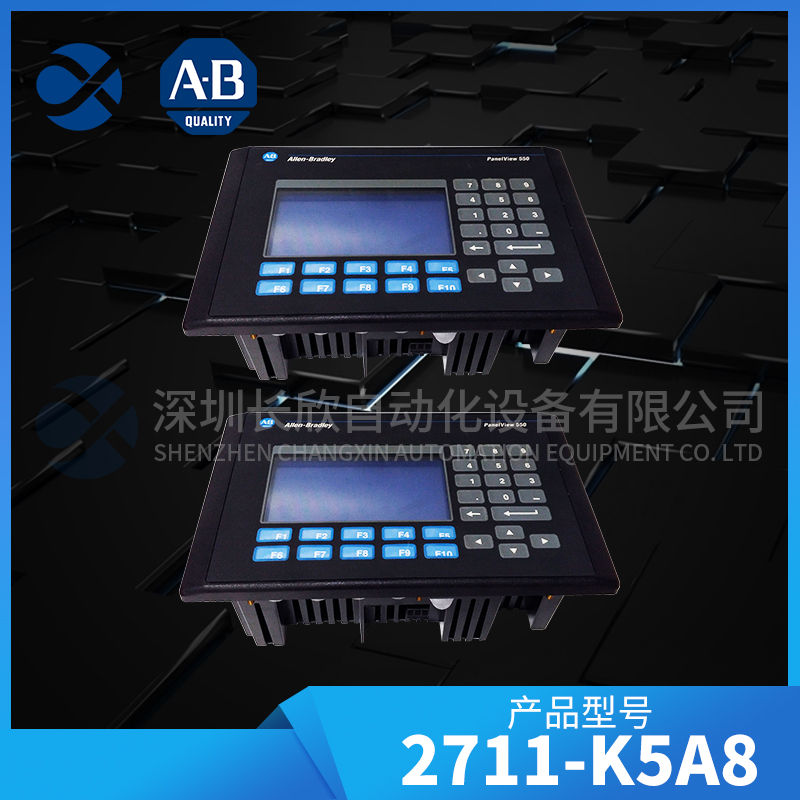

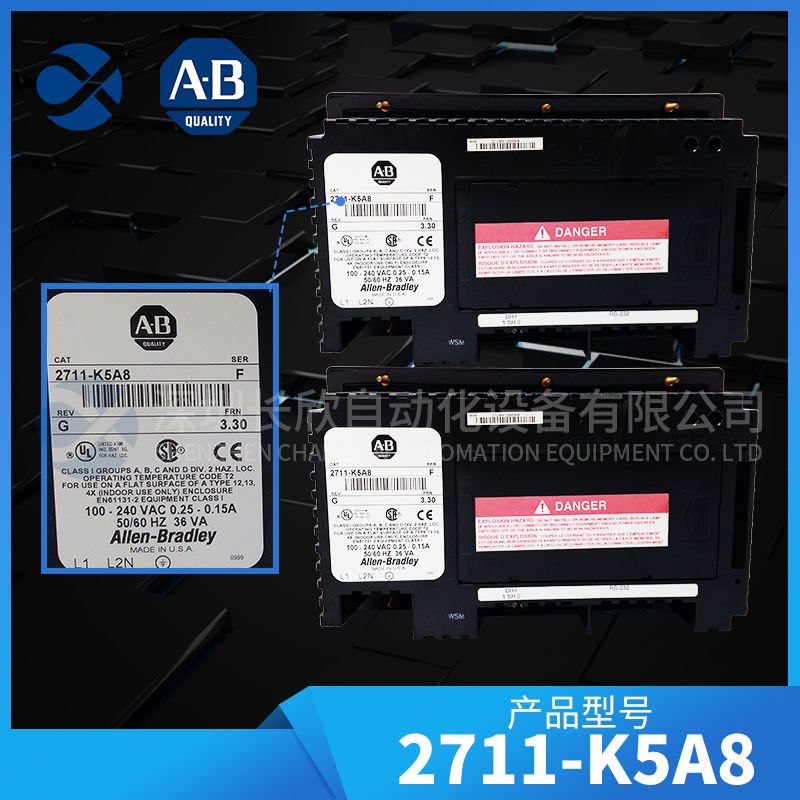

Allen Bradley 2711-K5A8 is a Panelview 550 standard operator terminal.The operator terminal is powered by an external 85-264V AC power supply and is equipped with a 5.5 inch monochrome display screen with embedded Data Highway Plus(DH+)and RS232 printer ports.It has ten(10)function keys and a keyboard operation interface.
Technical specifications for 2711-K5A8
Backlighting 100000 hours LED backlight life Brand Allen Bradley Manufacturer:Rockwell Automation Product Line:PanelView Standard Operator Terminal Product Type:PanelView 550 Standard Operator Terminal Operator Input:Keypad Display Type:Monochrome Transreflective LCD Display with LED backlight Display Area:120 x 60 mm(4.75 x 2.38 inches)Resolution:256 x 128 Keyboard Assembly:10 function keys(F1…F10)Application memory:170 KB application runtime;240 KB nonvolatile memory(application objects plus text and bitmaps)Communication port:DH+;RS232(printer)Input voltage range:85…264 VAC Input frequency:47…63 Hz Enclosure:NEMA type 12/13,4X(indoor use only),IP54,IP65
Status Indicator:Communication:Green Fault:Red Part Number/Catalog Number 2711-K5A8 Production Line PanelView 550 Display Size 5.5″Display Color Monochrome LCD Blue Mode Input Type Keyboard(F1-F10)Communication DH+Communication and RS-232 Printer Port Input Power 120 VAC Memory 170 KB Application Runtime Communication Cable 2711-NC13 Offshore Weight 6 lbs Shipping Size 14 x 11 x 8 inch Series a,B,C,D,E,F,G H Unit Production Costs 10662072073725 Product Life Cycle Status*Outage/Obsolescence
About 2711-K5A8
Allen Bradley 2711-K5A8 is a PanelView standard operator terminal.It has an embedded DH+and RS232 communication port for exchanging data between SLC and PLC controllers.The DH+communication port allows the implementation of a multi node topology and the use of Belden 9463 cables.The RS-232 printer port supports communication with alarm printers,printing logs,and alarm history.
The 2711-K5A8 keyboard provides functional control through 10 function keys,numeric keys,and navigation keys.For users who want to use a border different from the standard model,they can also choose to upgrade the stainless steel border.
The 2711-K5A8 keyboard has a display size of 5.5 inches and features 240 KB of nonvolatile memory and 170 KB of random access memory(RAM).According to troubleshooting requirements that may require replacing or repairing the 2711-K5A8 keyboard module,you can remove the keyboard from the Allen-Bradley Panel View Standard 550 terminal.
The process or machine operator interacts with the process using an embedded keyboard consisting of ten(10)function keys,numeric keys,and navigation keys.Function keys can be assigned variable assignments,such as global and local functions.Numeric keys allow input of analog variables and constants,while navigation buttons are used for screen and object selection.
Monitor the process through a single color 5.5 inch display with a display area of 120 x 60 mm(4.75 x 2.38 inches)And a resolution of 256 x 128 pixels.This screen has an internal backlight and is designed to operate for up to 100000 hours.
Install the 2711-K5A8 in a NEMA type 12/13,4X(indoor use only),IP54,and IP65 or any equivalent enclosure to ensure that the HMI is equipment is protected from dust,dirt,corrosive,and combustible gases.Observe the appropriate panel spacing of 2 inches on each side of the device to obtain proper thermal ventilation and promote natural air flow.
The rated power input range of 2711-K5A8 is 85-264V AC with a frequency of 47-63 Hz.The built-in random access memory(RAM)of the operator terminal is 170 KB,as well as expandable 240 KB nonvolatile memory.
2711-K5A8 FAQ
What communication ports are built into the 2711-K5A8 PanelView 550 terminal?
