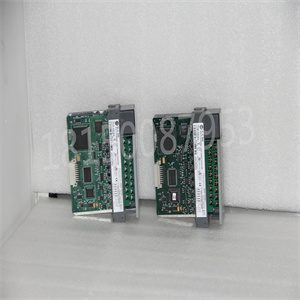

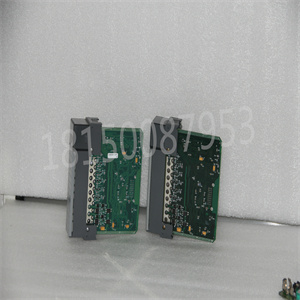

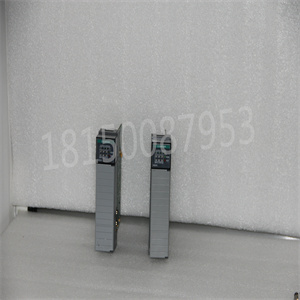

1746-HSCE2 AB
The 1746-HSCE2 is a high-speed counter module manufactured by Allen-Bradley, a brand of Rockwell Automation. It is designed to be used with the Allen-Bradley SLC 500 programmable logic controller (PLC) system.
The 1746-HSCE2 module has two independent counter channels that can count up to 1 MHz. It also has two independent encoder channels that can count up to 250 kHz. The module supports a variety of input types, including single-ended, differential, and quadrature encoders.
The 1746-HSCE2 module is commonly used in applications that require high-speed counting and precise position control, such as in packaging, material handling, and printing industries. It is a reliable and versatile module that can be easily integrated into an SLC 500 system.
The product with the code 1746-HSCE2 is a module from Allen-Bradley’s SLC 500 series. Here is some information about its content and parameters:
- Content:
- The module is designed to be used with SLC 500 programmable logic controllers (PLCs).
- It is a High-Speed Counter/Encoder Input module that allows precise counting and monitoring of high-speed digital inputs.
- The module is capable of counting pulses from various types of rotating or linear encoders, such as quadrature encoders, binary encoders, and pulse generators.
GE FANUC IC600CM548 USPP IC600CM548
GE FANUC IC600YB806 USPP IC600YB806
GE FANUC IC600BF904 NSFP IC600BF904
GE FANUC IC600WD010 USPP IC600WD010
GE FANUC IC600BF908 USPP IC600BF908
GE FANUC IC600BF804 NSFP IC600BF804
GE FANUC IC600YB908 USPP IC600YB908
GE FANUC IC600YB912 USPP IC600YB912
Parameters:
-
- The module supports up to four independent counter/encoder inputs.
- Each input can be configured for either single-ended or differential (A, B, and Z phase) encoder signals.
- It offers a maximum counting frequency of up to 60 kHz.
- The module supports both quadrature counting mode (for measuring position and direction) and single-phase counting mode.
- It provides high-speed inputs with a 2-millisecond input response time (for pulse-width detection).
- The module also offers a 32-bit position counter that can track up to 2 billion counts.
- It supports various counting modes, such as up/down, pulse/direction, and quadrature x2.
Overall, the 1746-HSCE2 module is a high-speed counter/encoder input module that provides accurate counting and monitoring capabilities for precise motion control and position tracking applications.
