Technical Specifications

Main Features and Advantages

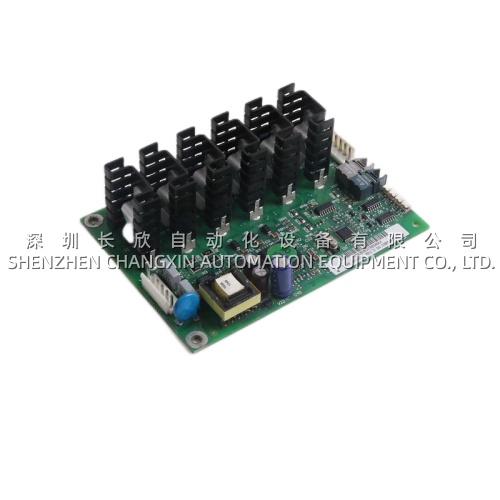

General-purpose relay outputs with strong isolation stand as the defining feature of the ABB 1KHL015107R0001 P4LR. Unlike transistor outputs that are limited to DC loads and fixed voltage levels, the module’s electromechanical relays can switch a wide range of AC and DC loads, from a 24V DC solenoid to a 250V AC motor contactor . This versatility greatly simplifies cabinet design and stock management. Equally important is the physical isolation provided by the relays, which protects the expensive controller and backplane from electrical noise and high-voltage transients, significantly enhancing overall system reliability and safety .

Designed for “swappability and maintainability,” the ABB 1KHL015107R0001 P4LR supports hot-swap replacement in compatible Symphony Plus racks . This feature is critical in processes that cannot tolerate extended downtime; a faulty board can be replaced without powering down the entire I/O station. The module is automatically recognized by the host DCS firmware upon insertion, inheriting the configuration from the backplane or controller, which eliminates the need for reprogramming or point-table changes . This plug-and-play capability dramatically reduces mean time to repair (MTTR).

Comprehensive diagnostics are integrated into the P4LR board design, with each channel featuring a dedicated LED indicator to provide local visual status of the control command . This allows maintenance personnel to quickly differentiate between a controller logic issue and a failed module, drastically cutting down troubleshooting time. Additionally, the ABB 1KHL015107R0001 is built to withstand harsh industrial climates, with a wide operating temperature range of -20°C to +60°C, ensuring stable performance in environments such as power plants and refineries .

Application Fields

The ABB 1KHL015107R0001 P4LR is a vital component in ABB Symphony Plus DCS installations, widely deployed across the process and energy sectors where the direct control of field devices is required. In thermal and nuclear power plants, the P4LR board is used in balance-of-plant systems to control cooling tower fan start/stop commands, lube-oil pump interlocks, and local alarm annunciation . It ensures that critical protection and sequencing logic outputs are executed reliably, facilitating safe and efficient plant operations .

In the oil, gas, and petrochemical industry, the ABB 1KHL015107R0001 is commonly applied to control motor contactors for pumps and compressors, switch actuated valves, and trigger emergency shutdown systems . Its ability to switch inductive loads and provide robust isolation makes it particularly suitable for these applications, where field conditions are electrically noisy and process safety is paramount . The P4LR module also sees extensive use in pulp and paper mills and water/wastewater treatment facilities, where it drives large motors, feeders, and mixers based on logic commands from the DCS .

Beyond process control, the ABB 1KHL015107R0001 finds application in manufacturing environments for controlling conveyor motors, machine tool spindles, and other heavy industrial equipment. Its strong isolation and ability to switch high currents make it a dependable choice for retrofitting or expanding legacy ABB DCS systems, helping to extend the service life of existing assets . For system integrators and maintenance professionals, this module represents the standard solution for interfacing controller logic with the physical world, ensuring reliable, long-term operation.
