Application Scenarios

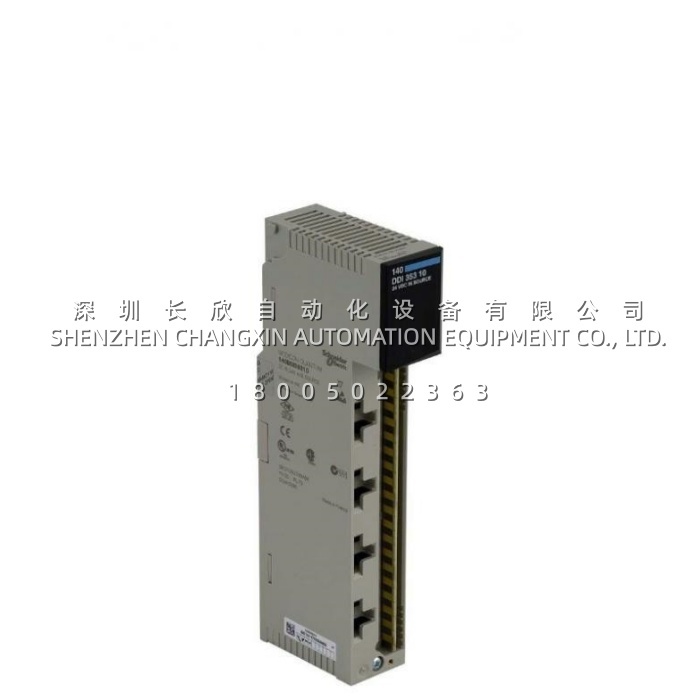

In a large water treatment facility spread across a vast site, hundreds of discrete signals—pump running status, valve positions, tank level switches, and flow meter pulse outputs—must be reliably collected and transmitted to the central control system. Traditional lower-density I/O modules would require numerous racks and significantly more cabinet space, driving up both capital expenditure and ongoing maintenance costs. The 140DDI35310 addresses this pain point directly with its 32-point high-density design, allowing the plant to consolidate dozens of field signals into a single module slot. When the engineering team deployed the 140DDI35310 in their Quantum PLC racks, they reduced I/O cabinet count by 40% compared to the previous 16-channel modules, while the 1ms response time ensured accurate detection of fast-changing pump and valve statuses .

Another common application is in manufacturing assembly lines, where numerous proximity sensors and photoelectric switches monitor part presence, position, and conveyor status. The flexible input logic of the 140DDI35310 allows engineers to connect both NPN (sinking) and PNP (sourcing) sensors without requiring separate interface modules . When a major automotive components plant upgraded their assembly line control, the 140DDI35310 proved invaluable—the module’s 32 green input status LEDs on the front panel allowed maintenance technicians to quickly identify failed sensors at a glance, reducing troubleshooting time from over an hour to just minutes .

Parameters
