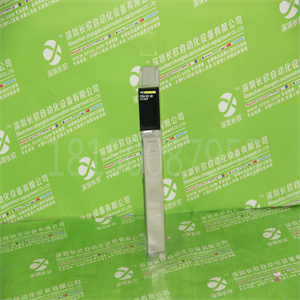

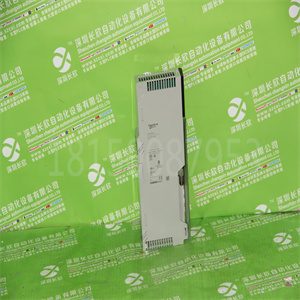

140cra31200 SCHNEIDER

The Schneider 140CRA31200 is a Compact Analog Input Module from the Schneider Electric Modicon Quantum series. It is designed to be used in the Quantum automation platform for industrial control applications.

Here are some key features and specifications of the 140CRA31200:

• Input Configuration: The module has 4 isolated analog input channels. Each channel can be individually configured for either voltage or current input.
• Input Range: The module supports a wide range of input voltages (-10 to +10V) and input currents (0 to 20mA).
• Resolution: The module offers a resolution of 13 bits for its analog inputs.
• Isolation: The analog input channels are isolated from each other and from the backplane to ensure electrical safety and prevent ground-loop issues.
• Diagnostic Features: The module provides diagnostic functions such as over-range and under-range detection, wire break detection, and short circuit detection.
• Module Compatibility: The 140CRA31200 module is compatible with any Quantum backplane and can be used alongside other modules in the Quantum automation platform.
• Communication: The module communicates with the Quantum Ethernet Remote I/O network using Modbus TCP/IP protocol.
• Power Supply: The module requires a 24V DC power supply for operation.
• Status Indicators: The module has LEDs for indicating power status, module status, and communication status.
• Operating Conditions: The module can operate within a temperature range of 0 to 60°C and a relative humidity range of 5 to 95% non-condensing.

ASEA BROWN BOVERI S6HQ800BWAS4 NSPP S6HQ800BWAS4

ASEA BROWN BOVERI 57088478 NSFP 57088478

ASEA BROWN BOVERI S6N800TX0-2AU8 NSPP S6N800TX02AU8

ASEA BROWN BOVERI 57120001-FG USPP 57120001FG

ASEA BROWN BOVERI YB560103-CH NSFP YB560103CH

ASEA BROWN BOVERI 57275871 NSFP 57275871

Technical Specifications:

• Communication Networks: Modbus TCP, Modbus Plus, Ethernet/IP
• Number of Ports: 2
• Protocols: TCP/IP, UDP/IP, ARP, ICMP, SMTP, DHCP, BOOTP, HTTP, SNMP, DNS
• Data Transfer Rate: 10/100 Mbps (Ethernet), 1 Mbps (Modbus Plus)
• Operating Temperature: 0-60°C
• Power Supply: 5 VDC, 300 mA

Compatibility:

• Compatible with Modicon Quantum PLCs and other devices in the Quantum automation system

Applications:

• Industrial automation and control systems
• Manufacturing and process automation
• Building automation
• Energy management systems

Please note that this information is based on general specifications and may vary depending on the specific model and version of the Schneider 140CRA31200. For detailed and up-to-date information, it is recommended to refer to the product datasheet or contact the Schneider Electric customer support
