Product Overview

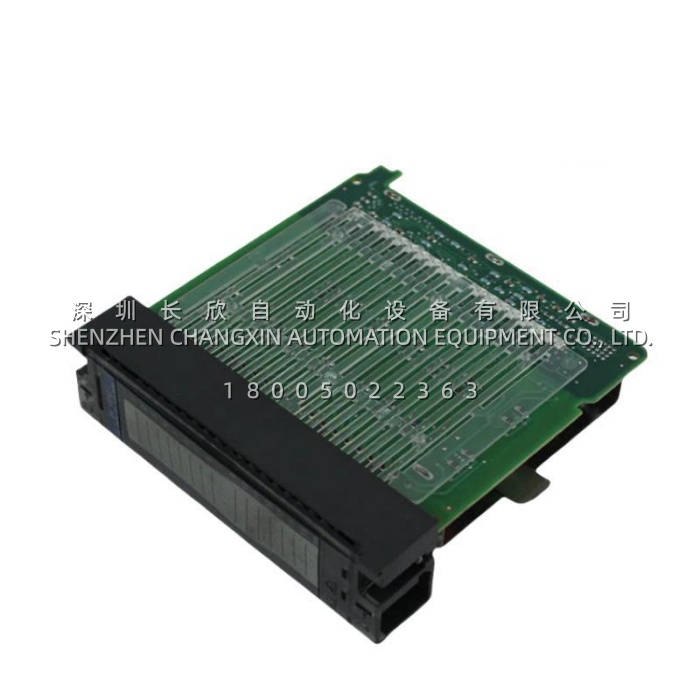

The Honeywell 900H03-0102 is an eight-channel AC digital output module for the ControlEdge HC900 process and logic controller, a modular hybrid control platform that Honeywell positions between a traditional PLC and a small DCS. Its job is the final step in every control loop: taking the discrete decisions computed by the HC900 CPU and turning them into real switching actions on plant equipment. The Honeywell 900H03-0102 does this with eight individually isolated zero-crossing Triac outputs rated for 120/240 VAC operation, so solenoid valves, contactor coils, motor starters, heater banks, fans, beacons and annunciator circuits can be driven directly from the rack without an interposing relay panel.

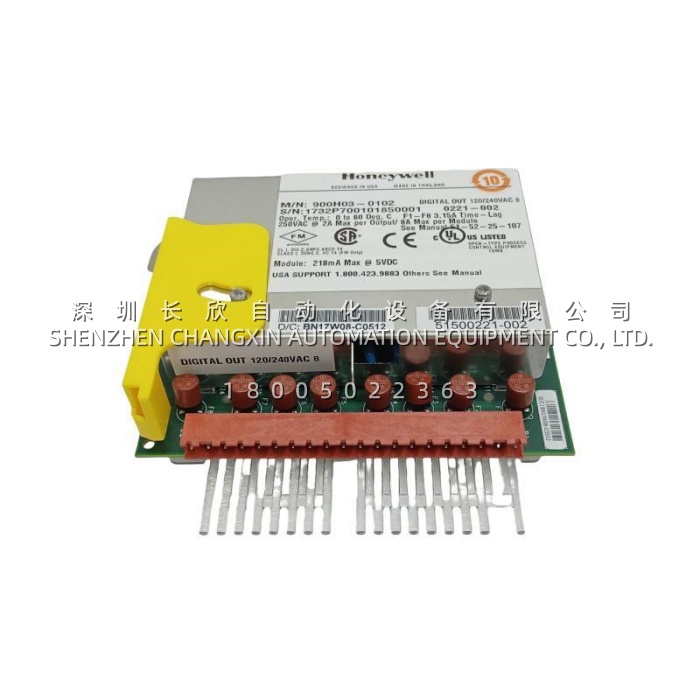

Within the ControlEdge 900 I/O family, the module belongs to the 8-point AC output branch that Honeywell documents alongside the 16-point DC sinking variants, which is why some distributor listings describe a DC version under the same part number. The documented and field-proven configuration of the Honeywell 900H03-0102 is the AC Triac assembly, carrying 3.15 A time-lag fuses per channel, an operating window of 85 to 240 VAC, 2 A per point and 8 A per module, and a backplane load of only 218 mA at 5 VDC. Because it plugs into the HC900 I/O rack, the Honeywell 900H03-0102 is auto-sensed and auto-configured on insertion, supports Removal and Insertion Under Power, and honours the user-defined failsafe state that all ControlEdge 900 I/O modules assume if controller communication is lost — a behaviour that matters when the outputs in question are part of a shutdown sequence.
For maintenance teams running installed HC900 systems, the value of the Honeywell 900H03-0102 is straightforward: it is the drop-in spare that keeps eight AC field circuits under deterministic control, with diagnostics visible on the module face and no rewiring or re-engineering required.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | Honeywell 900H03-0102 |
| Manufacturer | Honeywell (Honeywell Process Solutions) |
| Product Type | Digital output module, AC (DO) |
| Compatible System | ControlEdge HC900 process and logic controller, HC900 I/O rack |
| Number of Outputs | 8 channels, individually isolated |
| Output Device | Triac, zero-voltage (zero-crossing) switching |
| Operating Voltage Range | 85 to 240 VAC (120/240 VAC nominal) |
| Peak Voltage Rating | 250 VAC |
| AC Frequency | 47 to 63 Hz (50/60 Hz nominal) |
| Maximum Load Current | 2 A per point; 8 A maximum per module (resistive) |
| Minimum Load Current | 50 mA |
| Maximum Inrush Current | 15 A for 10 ms |
| Leakage Current | 4 mA at 240 VAC (typical) |
| On-State Voltage Drop | <2.0 VAC above 0.1 A; <3.0 VAC below 0.1 A |
| Response Time | OFF to ON 3 ms + 0.5 line cycle; ON to OFF 3 ms + 0.5 line cycle |
| Galvanic Isolation | Output-to-output and output-to-logic |
| Per-Channel Protection | 3.15 A time-lag fuse (F1-F8) plus MOV surge suppression |
| Backplane Power Loading | 218 mA maximum at 5 VDC |
| Failsafe Behaviour | User-defined failsafe state or hold last state on communication loss |
| Status Indication | Green LED per channel; green blinking scan LED; amber forced LED; red diagnostic LED |
| Hot Swap | Removal and Insertion Under Power (RIUP), auto-configured on insertion |
| Operating Temperature | 0 °C to 60 °C (32 °F to 140 °F) |
| Storage Temperature | -40 °C to 85 °C |
| Relative Humidity | 5% to 95% non-condensing |
| Dimensions (H x W x D) | 133 x 32 x 141 mm (approx. 13.3 x 3.2 x 14.1 cm) |
| Weight | Approx. 0.24 kg |
| Hazardous Area Approval | Class I, Div. 2, Groups A-D T4; Class I, Zone 2, IIC T4 (FM) |
| Documentation Reference | Honeywell manual 51-52-25-107 |
| Country of Origin | USA |
Main Features and Advantages
Zero-crossing Triac switching: The Honeywell 900H03-0102 uses isolated zero-voltage Triac outputs rather than electromechanical relays, which means there is no contact bounce, no mechanical wear and no audible chatter. Switching occurs as the AC waveform passes through zero, so the current step imposed on the supply is small and the electromagnetic noise generated is far lower than with random-phase switching. In practice that allows the Honeywell 900H03-0102 to drive high-cycle devices such as sequencing valve manifolds and pulsing heater strings for years without the degradation an electromechanical relay would show, and it reduces the stress on contactor coils and solenoid valves connected to it.
Isolation and integrated protection: Each output of the Honeywell 900H03-0102 is isolated from every other output and from the controller logic, so a fault or a transient on one field circuit cannot propagate into neighbouring channels or into the backplane. Every channel also carries a field-replaceable 3.15 A time-lag fuse, and a metal-oxide varistor suppresses line transients — a combination that makes shorted cables, jammed contactor coils and inductive kickback survivable events rather than board-replacement events. Because the fuses are individually replaceable, a single fault costs one fuse rather than a module.
Serviceability and predictable fault behaviour: ControlEdge racks support removal and insertion under power, so the Honeywell 900H03-0102 can be swapped during production once the field circuits on the affected channels are safely de-energised, and the controller recognises and configures the replacement automatically. Failsafe behaviour is user-defined: on loss of controller communication, outputs either hold their last state or move to a configured safe state, which is what makes the module usable in shutdown and permissive logic. Per-channel LEDs give a technician instant confirmation of what the module is doing without a laptop, while the m
