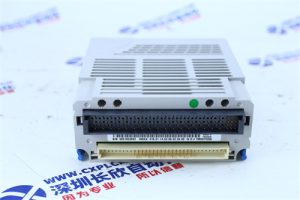

  1. Product NameGE 04240FD11234A RXi Series Distributed I/O Controller Module
  2. Product DescriptionThe GE 04240FD11234A is a high-reliability distributed I/O controller tailored for industrial automation scenarios. As a key component of GE’s RXi series and an integral part of the Mark VIe platform, it is specifically engineered to expand the I/O capacity of PLC systems, enabling efficient distributed control in industrial environments.
    This module is equipped with a 16-bit processor and supports I/O bus function version 16 and above. It integrates multiple industrial communication protocols such as Modbus and PROFINET, along with an RS – 485 communication interface, which allows seamless connection and data interaction with various field sensors, actuators, and upper – level control systems. Its modular design not only facilitates flexible configuration according to different application requirements but also simplifies later – stage expansion and maintenance.
    With a rugged industrial – grade structure, the module can operate stably in harsh working conditions. It serves as a core device for on – site data collection, signal processing, and real – time control, and can work in conjunction with RXi modular IPCs to form a unique control and computing platform suitable for the factory floor. It is extensively utilized in manufacturing, energy, transportation, and water treatment sectors, providing reliable control support for production lines, power systems, and traffic signal systems.
  3. Product Parameters
    Parameter Category Specific Content
    Core Processing Parameters Processor: 16 – bit processor; Memory: 128KB RAM + 1MB flash memory; Supports I/O bus function version 16 and higher
    Electrical Parameters Power supply voltage: 24V DC; Power consumption: 20W; Control precision: 0.2%
    Environmental Parameters Operating temperature range: 0°C to 70°C; Storage temperature range: -40°C to 85°C
    Communication Parameters Supported interfaces: RS – 485; Supported protocols: Modbus, PROFINET; It also supports communication protocols such as Modbus RTU and Modbus TCP/UDP
  4. GE 04240FD11234AProduct Specifications
    Specification Category Specific Content
    Physical Specifications Dimensions: 120mm × 120mm × 60mm; Protection class: IP65; Net weight: Not clearly marked, and it is estimated to be around 0.5kg based on similar products
    I/O Configuration Specifications Supports various types of I/O modules including digital input/output modules and analog input/output modules; It is equipped with 4 digital inputs, 4 analog inputs, and 4 relay outputs; The overall system can support up to 256 I/O points
    Functional Specifications Supports creating User – Defined Types (UDT) to provide logical definitions for I/O, status, and control data; Acts as a coprocessor to reduce the impact on PLC scanning time; Has online diagnostic capabilities, and diagnostic data can be viewed through processor controller labels
    Adaptability Specifications Compatible with compact logging processors (excluding MicroLogix 1500); Can be used in conjunction with RXi modular IPCs; Adaptable to voltage ranges of 100 – 600V, current ranges of 5A – 100A, and power ranges of 100W – 100kW in industrial systems
