Product Overview

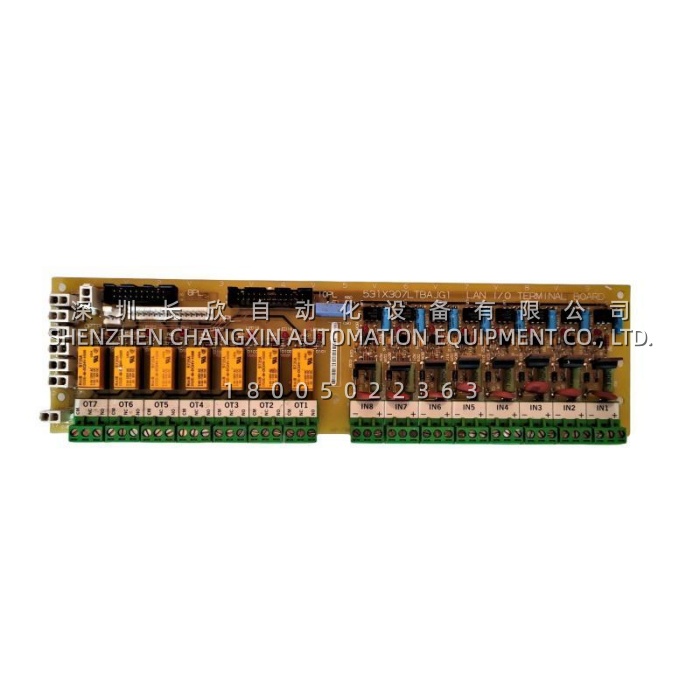

The GE 531X307LTBAJG1 is a LAN (Local Area Network) I/O terminal board from the GE 531X series, designed to serve as a signal interface between control drives and external field devices in industrial automation and excitation systems . This board is installed in the cabinets of GE drives and exciters, providing a system interface for peripheral equipment such as interlocks, push buttons, and indicating lamps . The GE 531X307LTBAJG1 enables the distribution of LAN signals through its interface platform, connecting external devices to the drive control board .
The GE 531X307LTBAJG1 accepts a wide input voltage range of 2 to 240 V AC/DC and converts these inputs into 24 V DC logic signals that are compatible with the control board . It provides eight configurable control input plugs for the drive and seven integrated control outputs consisting of low-current, low-voltage C-type relay contact connectors . The GE 531X307LTBAJG1 is a replacement board within the 531X series, and its technical support was originally provided by General Electric . The “G1” suffix indicates a specific revision level of the board .
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | GE 531X307LTBAJG1 |
| Manufacturer | GE (General Electric) |
| Product Type | LAN I/O Terminal Board (LAN Terminal Board) |
| Series | 531X Series |
| System Compatibility | EX2000, DC2000, AC2000 drive and excitation systems |
| Input Channels | 8 configurable control input plugs (CI1–CI8) |
| Input Voltage | 2–240 V AC/DC (wide range, AC/DC compatible) |
| Output Channels | 7 C-type relay contacts (OT1–OT7, RX1–RX7) |
| Relay Contact Rating | 2 A @ 30 Vdc / 250 Vac |
| Output Signal | 24 V DC logic signal |
| Communication Interface | RS-485 via backplane LAN; ribbon cable connection to drive control board |
| LED Indicators | 15 LEDs for input and output channel status |
| Isolation | 2500 Vrms isolation between channels and backplane |
| Operating Temperature | -30°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Protection Class | IP20 (for installation in electrical cabinet) |
| Installation Type | Panel/rack mounting |
| Dimensions | Approx. 292 × 51 × 51 mm |
Main Features and Advantages
Wide voltage input and flexible interfacing: The GE 531X307LTBAJG1 accepts a broad 2–240 V AC/DC input range, allowing direct connection to field devices without requiring additional signal conversion modules . This wide input compatibility simplifies system integration and reduces the need for external signal conditioners. The GE 531X307LTBAJG1 converts incoming field signals to 24 V DC logic signals, which are then processed by the control board . This design makes the GE 531X307LTBAJG1 a versatile interface solution for diverse industrial applications.
Relay outputs and status monitoring: The board features seven integrated C-type relay contact outputs capable of directly driving contactors, indicating lamps, and interlock solenoids . Each relay contact is rated at 2 A, enabling direct control without external intermediate relays . The GE 531X307LTBAJG1 includes 15 onboard LED indicators that provide real-time visual status of each input and output channel, significantly reducing troubleshooting time for maintenance personnel . This feature allows for rapid fault identification without the need for multimeters .
Proven reliability and lifecycle support: The GE 531X307LTBAJG1 is a replacement board within the GE 531X series, a platform widely deployed in industrial drive and excitation systems. The “G1” revision of the GE 531X307LTBAJG1 features improved turn-on and turn-off thresholds, enhancing noise immunity in demanding industrial environments . As a critical component in legacy systems, the GE 531X307LTBAJG1 offers a reliable path to maintaining the operational life of existing GE equipment.
