Description
The GE 531X139APMARM7 is a Micro Application Board / Application Processor Module (APM) from GE’s 531X series, designed as an ARM7 revision board for the Speedtronic Mark V turbine control system and the GE 531X industrial drive platform (including DC-300, AC-300, and AC2000 drives) . This board functions as a dedicated application-level processor that runs specific control algorithms independently, offloading computational tasks from the main system processor.

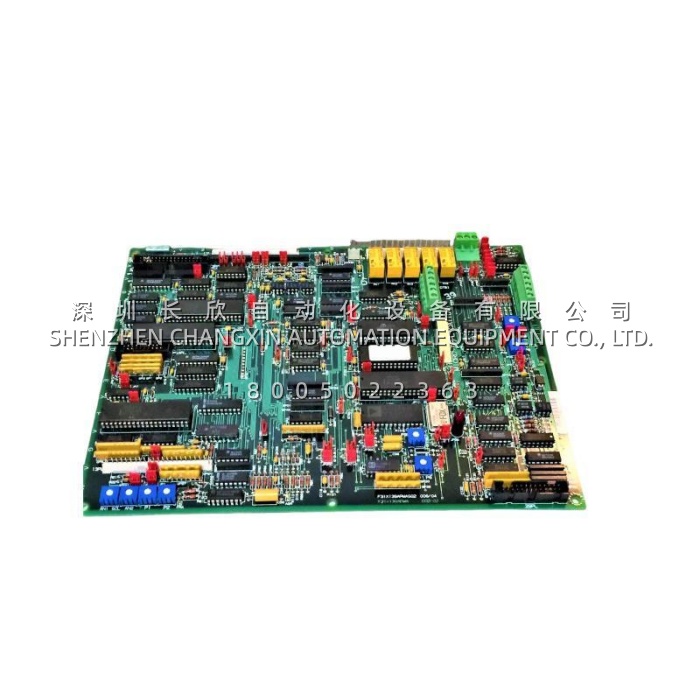

Physically, the 531X139APMARM7 is a densely populated industrial PCB containing 45+ integrated circuits, four onboard relays (K1-RUN, K2-MAX, K3-FAULT), jumper switches, TP test points, diodes, and local capacitor banks . It connects to the system through three terminal strips, four header connectors, and two vertical pin cable connectors. The board also features three precision potentiometers (P1 FIELD SCALE, P2 CFB ZERO, P3 CFB ADJUST) for hardware-level field calibration of field current and current feedback signals .
Application Scenarios
A hot strip mill in northern China operates a roughing stand driven by a legacy GE DC-300 DC drive, alongside a gas turbine generator controlled by a Speedtronic Mark V system. For over a decade, the plant’s spares strategy relied on the assumption that “a 531X139 board is a 531X139 board.” That assumption failed on a night shift.
A micro application board in the DC-300 cabinet failed, tripping the main drive. Maintenance pulled the spare from the shelf—a 531X139APMAMM7—and installed it. The board fit the slot but wouldn’t initialize. The cabinet specifically required a 531X139APMARM7, not the APMAMM7 revision. Different suffix, different jumper map, different firmware expectations. The plant lost eleven hours waiting for a supplier who could confirm the correct suffix .
This case illustrates a critical reality for anyone maintaining GE 531X-based systems: the suffix is the part number. 531X139APMARM7, 531X139APMAMM7, 531X139APMALM7, and 531X139APMASM7 share the same base number and physical form factor—they fit the same slot and connect to the same backplane—but they are not interchangeable. Jumper configurations, signal conditioning paths, and firmware expectations differ across revisions .
The 531X139APMARM7 is deployed across two of GE’s most widely installed legacy platforms:
- Speedtronic Mark V turbine control systems (gas and steam turbines) — handles application-specific processing tasks that the main turbine controller doesn’t execute
- GE 531X industrial drive family (DC-300 DC drives, AC-300 / AC2000 AC drives) — manages application-level control logic, signal conditioning, and interface management
For plants running these twenty-year-old architectures, the value of this board isn’t about performance specs. It’s about the simple fact that when the specific board in the specific slot fails, the outage costs more than the spare ever did .
