Product Overview

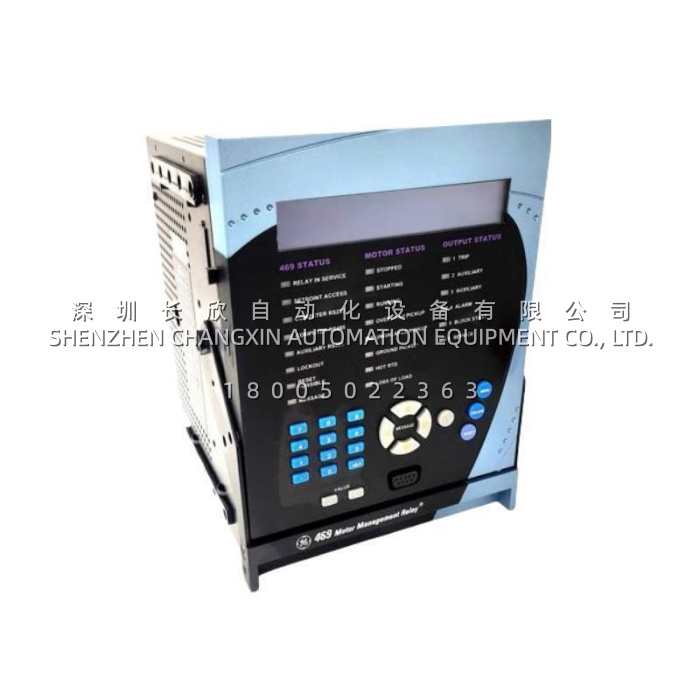

The GE 469-P5-AI-A1-E-H is a microprocessor-based motor management relay from the GE Multilin 469 series, built to protect, control and monitor medium and large three-phase motors in industrial power systems. The order code reads as follows: P5 denotes 5 A phase CT secondaries, the control power option is the wide-range high input (90 to 300 V DC or 70 to 265 V AC at 48 to 62 Hz), A1 specifies four 0 to 1 mA analog outputs, E indicates the enhanced 40-character LCD faceplate with larger display, and H marks the harsh-environment conformal coating applied to the boards.
Where a plain overload relay simply reacts to current, the GE 469-P5-AI-A1-E-H builds a running thermal model of the machine, biased by up to 12 RTD inputs on the stator and bearings and by negative-sequence current, so the thermal capacity figure shown on the faceplate reflects real winding temperature rather than an estimate. Around that core sit the protection elements plant engineers expect: thermal overload with customisable curves, short circuit with trip backup, ground fault, current unbalance with single-phasing detection, locked rotor and stall detection during starting, undercurrent, under/overvoltage, over/underfrequency, phase reversal, and power elements such as underpower, reverse power, power factor and overtorque. Single-CT differential protection is also available for machines where a full differential scheme is not practical.
Beyond protection, the GE 469-P5-AI-A1-E-H meters voltage, current, power, demand and energy, records time-stamped events with pre-trip waveform capture, and acts as a remote terminal unit over RS485 Modbus RTU with a front RS232 service port. Housed in the SR-family draw-out case, it can be withdrawn for replacement with the CT circuits automatically shorted. Manufacturing of the 469 series has ended, so the GE 469-P5-AI-A1-E-H now circulates mainly as new surplus spare stock, with the Multilin 869 as the usual migration target.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | 469-P5-AI-A1-E-H |
| Manufacturer | GE Multilin (GE Vernova Grid Solutions) |
| Product Type | Motor management relay / motor protection system |
| Series / case | Multilin 469, SR-family draw-out case with automatic CT shorting |
| Phase current inputs | 5 A phase CT secondaries (P5 option) |
| Ground current input | Standard 1 A / 5 A ground CT or 50:0.025 zero-sequence CT |
| Control power | 90 – 300 V DC or 70 – 265 V AC, 48 – 62 Hz; maximum 45 VA burden |
| Analog outputs | Four 0 to 1 mA outputs (A1 option); four analog inputs available on the platform |
| RTD inputs | 12 assignable inputs, 3-wire, 100 Ω platinum, 100/120 Ω nickel, 10 Ω copper |
| Digital inputs / output relays | 9 optically isolated inputs; up to 6 Form-C output relays, one configurable as failsafe service relay |
| Communication | Front RS232, two rear RS485 ports with Modbus RTU; optional 10Base-T Ethernet (Modbus TCP/IP) and DeviceNet on other variants |
| Protection functions | Thermal overload (49), short circuit (50/51), ground fault (50G/51G), unbalance (46), locked rotor/stall (48/51R), undercurrent (37), voltage and frequency (27/59/81), single-CT differential, power elements |
| Metering and recording | Voltage, current, power, power factor, demand, energy, thermal capacity; event log with time stamps and pre-trip waveform capture |
| Display / configuration | Enhanced 40-character LCD with keypad; EnerVista 469 setup software |
| Ambient conditions | Operating -40 °C to +60 °C with LCD contrast reduced below -20 °C; storage -40 °C to +80 °C; up to 95 % RH non-condensing |
| Enclosure / mounting | Draw-out case, panel cut-out mounting, IP40 front and IP20 rear; flame retardant, corrosion and dust resistant chassis, conformal coating (H option) |
| Physical data | Approximately 21.8 × 22.8 × 25 cm with case, about 7.3 kg |
| Lifecycle status | Discontinued by the manufacturer; supplied as new surplus, replacement path toward the Multilin 869 |
Ratings above follow the published 469 order-code and instruction manual data; the marking and firmware revision on the delivered unit should always be checked before it is placed into a live protection scheme.
Main Features and Advantages
Thermal model biased by real temperature: Rather than inferring winding heat from current alone, the GE 469-P5-AI-A1-E-H accepts 12 RTD inputs and folds their readings into the thermal capacity calculation, with negative-sequence current adding further bias during unbalanced supply conditions. The practical effect is fewer nuisance trips on motors that start heavy loads, and a trip that arrives before insulation damage rather than after it. Thermal capacity used, time-to-trip and time-to-start remain visible on the faceplate, so operators can decide whether to run one more batch or shut down deliberately.
Protection breadth in a single device: Overload, short circuit with backup tripping, ground fault with two pickup levels, current unbalance with single-phasing detection, mechanical jam, stall during acceleration, undercurrent, voltage and frequency elements, phase reversal, plus power-based functions such as underpower, reverse power, power factor and overtorque. Consolidating these into the GE 469-P5-AI-A1-E-H removes the separate relay inventory that a traditional panel would need, and every element can be blocked during starting where that behaviour is appropriate.

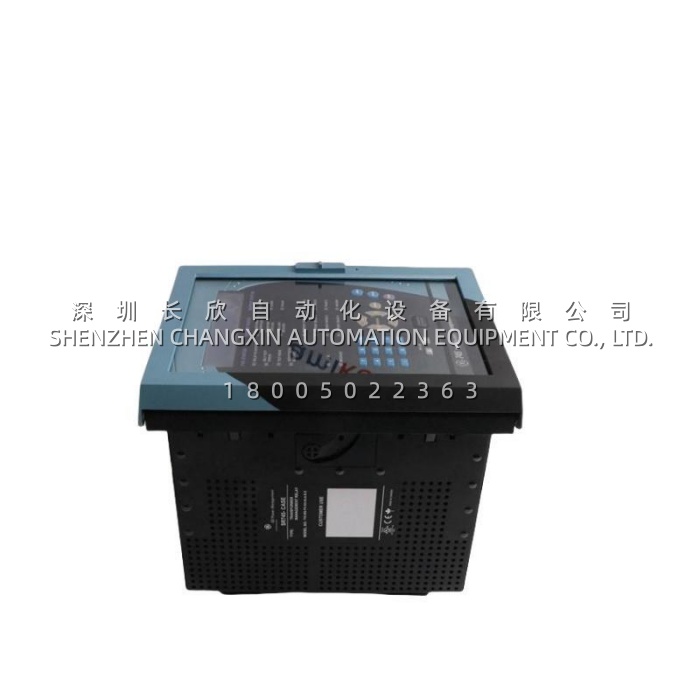

Draw-out construction that protects the CT circuit: Withdrawing the GE 469-P5-AI-A1-E-H from its case shorts the current transformer secondaries automatically, so a failed relay can be exchanged without opening the CT wiring or de-energising the whole switchgear line-up. On a continuous process plant, that difference is measured in minutes of outage instead of a full shift of permit work.
Diagnostics worth reading after a trip: Time-stamped event records with pre-fault waveform capture let the maintenance team reconstruct what the motor saw in the seconds before the trip, which is usually enough to distinguish a genuine mechanical jam from a supply disturbance or a setting that was simply too tight.
Built for the cabinet environment: The conformal coating denoted by the H suffix protects the electronics against chemical vapour, dust and humidity, and the enhanced display stays legible where a basic 2-line LCD would not.
Application Field
Pumps, fans and compressors form the largest installed base for the GE 469-P5-AI-A1-E-H. In water and wastewater plants, medium-voltage pump motors run for months without attention, and the combination of thermal modelling, undercurrent detection for loss of prime, and RTD-based bearing monitoring catches the failure modes that actually occur in service. Petrochemical and refining sites apply the same relay to critical compressors, where the stall and locked-rotor elements protect the machine during difficult restarts and the analog outputs feed motor load straight into the DCS trend.
Mining and cement operations favour the H-suffix variant for a different reason: dust, vibration and occasional chemical exposure. A GE 469-P5-AI-A1-E-H mounted in a draw-out case in a motor control centre can be pulled, inspected and reinserted during a planned stop without disturbing the CT wiring, which suits sites where access windows are short and permits are expensive.
Power generation auxiliaries, including boiler feed pumps, induced draft fans and circulating water pumps, represent another substantial population, and here the relay often doubles as the local RTU — the RS485 Modbus link reports current, thermal capacity, energy and start counts to the plant SCADA while the output relays handle trip and start-block duties.
Because the 469 series has been discontinued, most current demand is spare-part driven. Plants holding an installed base keep at least one configured GE 469-P5-AI-A1-E-H on the shelf with the setpoint file saved, since a relay failure on a critical motor otherwise means either an unplanned outage or an emergency migration to the Multilin 869 with its different case and wiring.
