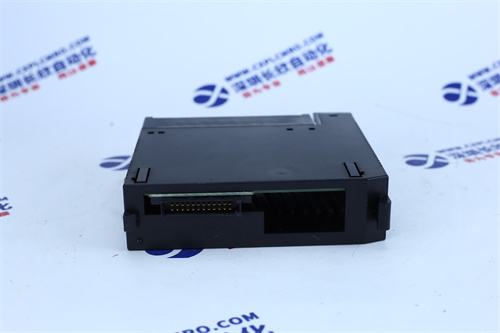

ABB CI570 3BSE001440R1
Product Description:
The ABB CI570 (part number 3BSE001440R1) is a Master Fieldbus Controller within the ABB Advant OCS (Open Control System) with Master software platform. Specifically, it functions as a PROFIBUS DP Master communication interface module. This module enables the Advant Controller 450 to communicate with PROFIBUS DP (Decentralized Peripherals) slaves, facilitating the integration of field devices and distributed I/O systems that support the PROFIBUS DP protocol into the ABB control system. It enhances process automation by providing a robust and reliable communication link to a wide range of field instrumentation and actuators.
Key Characteristics:
- PROFIBUS DP Master: Acts as the master in a PROFIBUS DP network.
- High-Performance Communication: Provides efficient and fast data exchange with PROFIBUS DP slave devices.
- Seamless Integration: Allows easy integration of PROFIBUS DP compliant devices into the ABB Advant OCS system.
- Redundancy Support: The Advant Controller 450 system supports redundancy at various levels, which may extend to the CI570 module for increased availability.
- Configuration and Diagnostics: Configuration is typically done through the ABB control system software, and the module provides diagnostics for easy troubleshooting.
Product Parameters:
- Manufacturer: ABB
- Part Number: 3BSE001440R1
- Model: CI570
- Product Type: Master Fieldbus Controller (PROFIBUS DP Master)
- Communication Protocol: PROFIBUS DP
- Baud Rate: Supports standard PROFIBUS DP baud rates (up to 12 Mbit/s).
- Number of Slaves: The number of supported slaves depends on the PROFIBUS DP network configuration and the capabilities of the master and slaves.
- Interface: Standard PROFIBUS DP interface (typically 9-pin D-sub connector).
- Power Supply: Powered by the Advant Controller 450 system backplane.
- Current Consumption: (Specific current draw details should be checked in the official ABB documentation).
- Operating Temperature: (Specific operating temperature range should be checked in the official ABB documentation).
Specifications:
- Manufacturer: ABB
- Model: CI570
- Product Type: PROFIBUS DP Master Module
