Product Overview

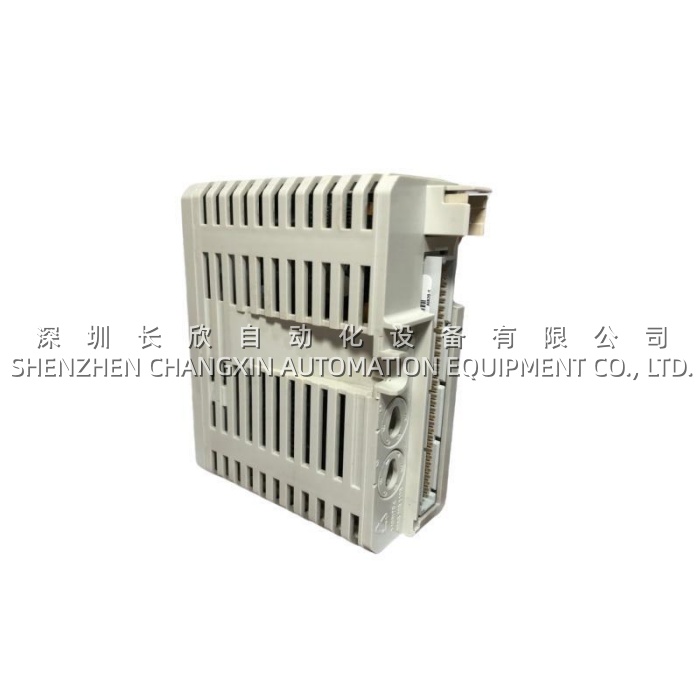

The ABB 3BSE008544R1, officially designated as the AI820 Analog Input Module, is a high-precision I/O module purpose-built for ABB’s Advant OCS, 800xA, and Symphony Plus distributed control systems (DCS) . Serving as the “sensory interface” between the physical process and the digital control world, the ABB AI820 accurately converts analog field signals—such as temperature, pressure, flow, and level—into digital values that the system controller can process for real-time monitoring and closed-loop control . This ABB 3BSE008544R1 module is the cornerstone of accurate data acquisition in mission-critical process automation applications.
The ABB AI820 is engineered to deliver reliable and versatile performance. Configurable for a wide range of current and voltage signals, it provides the flexibility required in modern industrial plants with diverse instrumentation . With its 16-bit resolution and high accuracy, the ABB 3BSE008544R1 ensures that process variables are captured with the fidelity necessary for precise regulatory control and quality assurance . Designed for integration into ABB’s S800 I/O family, this ABB AI820 module is compatible with various termination units (TUs) and supports advanced features like hot-swap capability and redundant communication, making it a reliable foundation for system expansions, upgrades, or lifecycle replacements in any ABB-based automation architecture .
Technical Specifications
| Parameter Name | Value |
|---|---|
| Product Model (Order No.) | 3BSE008544R1 |
| Type Designation | AI820 |
| Manufacturer | ABB |
| Product Type | Analog Input Module (AI) |
| System Compatibility | Advant OCS, 800xA, Symphony Plus, Compact Product Suite |
| Number of Channels | 8 Independent Input Channels |
| Input Signal Types | Configurable per channel: 4-20mA, 0-20mA, ±20mA, 0-10V, ±10V, 0-5V, ±5V, 1-5V |
| Input Impedance | 100Ω (Current), 1 MΩ (Voltage) |
| Resolution | 16 Bits (14 Bits + 2 Sign Bits typical for some configurations) |
| Conversion Accuracy | ±0.1% of Full Span |
| Channel Isolation | Group Isolation (channels isolated in groups of 4) |
| Overvoltage Protection | ±30V DC Continuous |
| Sampling Rate | Approx. 10 ms per channel (8-channel cycle) |
| Power Consumption | Typically 150mA @ 24V DC |
| Operating Temperature | 0°C to +60°C |
| Protection Rating | IP20 |
| Mounting Type | DIN Rail Mountable in S800 I/O Rack |
| Module Termination Unit (MTU) | TU810V1, TU812V1, TU814V1, TU830V1, TU833 |
Main Features and Advantages
High-Precision Data Acquisition:
The ABB 3BSE008544R1 offers superior measurement accuracy, featuring a 16-bit resolution that ensures precise digitization of analog signals . This level of precision is essential for critical control loops where even minor fluctuations in a measured variable can affect product quality or process efficiency. With a typical accuracy of ±0.1% of full span, the ABB AI820 provides the reliable, repeatable data needed for high-performance regulatory control, enabling operators to fine-tune processes with confidence.
Exceptional Configuration Versatility:
A key advantage of the is its ability to accommodate a broad spectrum of analog input signals. Each of its 8 channels can be independently configured via software to accept either current (4-20 mA, 0-20 mA, ±20 mA) or voltage (0-10 V, ±10 V, etc.) signals . This flexibility significantly reduces the number of spare parts required and simplifies system design. In a mixed-instrumentation environment, a single ABB 3BSE008544R1 module can interface with legacy 4-20mA transmitters, modern smart sensors with voltage outputs, and other specialized field devices, streamlining inventory and reducing complexity.
Robust Industrial Design:
Engineered for harsh industrial settings, the ABB 3BSE008544R1 features group isolation that protects against voltage potentials between different field signal groups, ensuring signal integrity and preventing ground loops . With built-in overvoltage protection up to ±30V DC and a wide operating temperature range, the guarantees reliable data acquisition even in demanding environments such as power plants, chemical facilities, and steel mills. Additionally, its support for hot-swap capability and redundant communication via ModuleBus allows for online module replacement without system shutdown, maximizing plant availability and simplifying maintenance in critical 24/7 operations .
