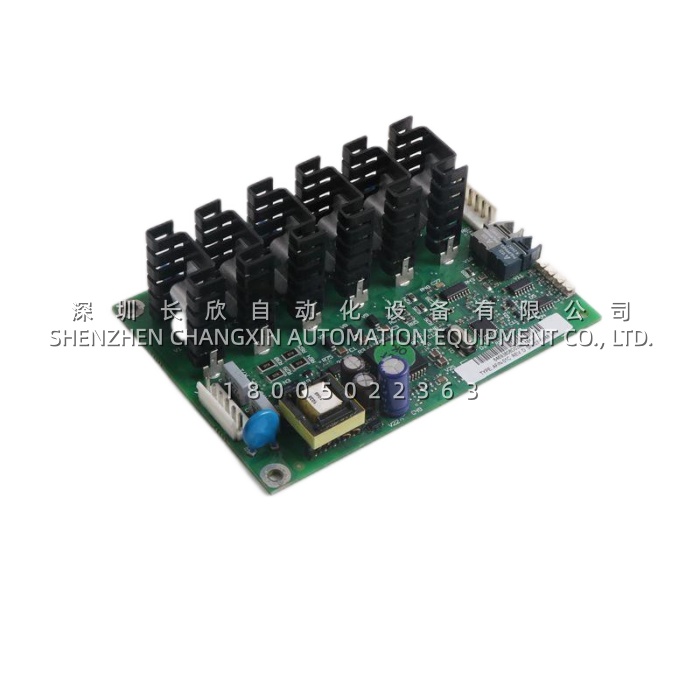

Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | 89NU04B-E |
| Complete Ordering Code | GKWE853000R0200 |
| Manufacturer | ABB (Sweden) |
| Product Type | Remote Bus Coupling Module / Bus Bridge Module |
| System Compatibility | ABB Procontrol P14 DCS, Advant OCS with Master SW |
| Product Status | Original Production Discontinued (Legacy Spare) |
| Number of Bus Segments | 2 (Isolated Segments) |
| Segment Isolation Voltage | 1500 V DC to 2500 V DC (typical) |
| Communication Rate | Up to 10 Mbps (Procontrol P14 station bus) |
| Signal Delay | ≤ 100 ns (typical) |
| Maximum Cable Length | 100 m to 1200 m per segment (depends on configuration) |
| Power Supply | Passive (backplane-powered) or 24 V DC (project-dependent) |
| Power Consumption | ≤ 5 W (typical) |
| Processor | 32-bit Independent CPU (for protocol conversion & redundancy) |
| Redundancy Support | Dual Module Hot Standby, Dual Bus Redundancy |
| Diagnostic Interface | Front 9-pin Connector (X1) for terminal/PC diagnostics |
| Physical Dimensions | Approx. 20 mm (W) × 258 mm (H) × 262 mm (D) |
| Weight | Approx. 0.54 kg |
| Mounting | Procontrol P14 Backplane Slot (DIN 41612 standard) |
| Protection Rating | IP20 (Cabinet Installation) |
| Operating Temperature | -20 °C to +70 °C (or 0 °C to +70 °C) |
| Storage Temperature | -40 °C to +85 °C |
| Safety Certification | SIL2/SIL3 (IEC 61508/61511), CE, UL |
Main Features and Advantages
High-Isolation Bus Extension: The primary advantage of the ABB 89NU04B-E is its ability to safely extend the system’s station bus over significant distances. A frequent challenge in large DCS installations is the ground potential difference between cabinets located hundreds of meters apart. This can induce disruptive ground loops that cause communication errors or damage interfaces. The ABB 89NU04B-E employs robust galvanic isolation—rated up to 2500 V DC—to completely break the electrical path between bus segments. This allows the signal to pass while blocking the electrical current, effectively solving the “ground loop” problem and ensuring stable, error-free communication in electrically noisy environments like steel mills or power plants .
Redundancy and Reliability: For applications where downtime is not an option, the ABB 89NU04B-E supports dual-module hot standby and dual-bus redundancy configurations . When configured in a redundant pair, a secondary module automatically takes over bus communication within milliseconds if the primary module fails. This failover is seamless, remaining transparent to the controller and operator stations. This feature provides a high level of system availability, which is critical in power generation and chemical processing . The module’s independent 32-bit processor ensures that protocol conversion and redundancy switching occur without burdening the central CPU, contributing to overall system performance .
Passive Design for Simplicity: Depending on the specific project configuration, the ABB 89NU04B-E can function as a passive device, drawing the energy for its signal transmission from the backplane . This design philosophy simplifies installation and reduces the number of external components that could fail. By eliminating an external power supply and its associated wiring, the module reduces a potential point of failure in the system, enhancing overall reliability.
