Product Overview

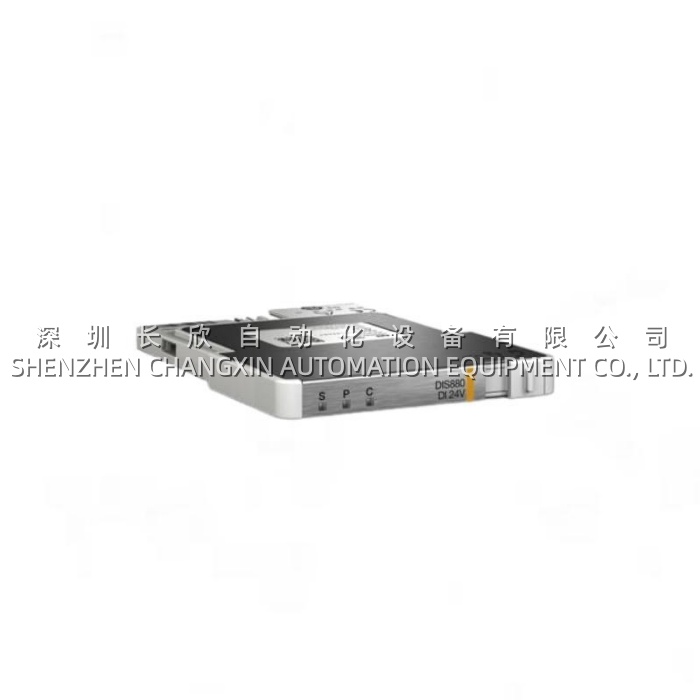

The ABB 3BSE074057R1 (functional designation DIS880) is a Digital Input 24 V Signal Conditioning Module (SCM) within ABB’s Select I/O family, the single-channel-granular, Ethernet-networked I/O architecture designed for the ABB Ability™ System 800xA automation platform. Unlike traditional rack-based I/O where a module carries 8–16 channels, Select I/O adopts “one SCM = one channel” granularity: each DIS880 handles exactly one 24 V DC digital-input loop, and up to 16 SCMs slot into a Module Termination Unit (MTU) that provides the field-terminal blocks, Modulebus power, and Ethernet backhaul. This architectural choice lets plant projects decouple I/O cabinetry from controller configuration, absorb late scope changes without rewiring, and standardize cabinet builds across units—a recurring pain point in large greenfield DCS rollouts .
The ABB 3BSE074057R1 is certified for SIL3 high-integrity applications and supports 2-wire, 3-wire, and externally powered 4-wire field devices (dry contacts, proximity switches, etc.). Each DIS880 channel is galvanically isolated from the system side and from every other channel in the MTU, with factory routine test at 3060 V DC—meaning a shorted field loop on channel 4 cannot propagate noise or ground offset into channel 7 or back to the Modulebus. The module delivers field-device power current-limited to 30 mA, accepts ±35 V robustness on all terminals (wrong-wiring protection), and supports Sequence of Events (SOE) with configurable software signal filter 0–100 ms. Redundancy is supported at the MTU/Ethernet layer, and the ABB 3BSE074057R1 itself is hot-swap capable: a mechanical locking slider cuts field power before extraction, and mechanical keying prevents inserting the wrong SCM type into a given MTU slot after commissioning .
Physically, the DIS880 measures 77.9 × 105 × 9.8 mm and weighs 73 g including base—extremely compact because it is essentially a single-channel smart-head sitting in the MTU’s 16-slot array. Power comes from the 24 V Modulebus; dissipation is only 0.55 W. Operating range spans –40 °C to +70 °C, pollution degree 2 per IEC 60664-1, IP20, with CE / UKCA / UL 61010-1 / CSA markings. In practice, the ABB 3BSE074057R1 is the “go-to” SIL3 DI SCM for any 800xA Select I/O project where a safety-rated digital input—ESD pushbuttons, fire-and-gas trip contacts, turbine protective limits—needs SOE-grade timestamping and per-channel galvanic isolation that a multi-channel DI card cannot guarantee.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | DIS880 (3BSE074057R1) |
| Manufacturer | ABB |
| Product Type | Signal Conditioning Module (SCM) – Digital Input, SIL3 |
| System Family | ABB Select I/O / Ability™ System 800xA |
| Number of Channels | 1 (single-channel granularity) |
| Signal Specification | 24 V DC, 2-wire / 3-wire / 4-wire (external power for 4-wire) |
| Input Voltage Range | 19.2 … 30 V DC |
| Field Input Robustness | ±35 V between all terminals |
| Field Power | Current-limited to 30 mA |
| SOE (Sequence of Events) | Yes |
| SIL Rating | SIL3 certified (high integrity) |
| HART | N/A (digital input) |
| Redundancy | Yes (MTU / Ethernet layer) |
| Hot Swap | Yes, with mechanical locking slider |
| Isolation | Galvanic, ch-to-ch and ch-to-system; factory test 3060 V DC |
| Diagnostics | Loop supervision (open/short), hardware, communication, internal power |
| Filter | Configurable software signal filter 0…100 ms |
| Power Dissipation | 0.55 W |
| Supply | 24 V DC via Modulebus |
| Operating Temperature | –40 °C to +70 °C |
| Storage Temperature | –40 °C to +85 °C |
| Humidity | 5–95 % RH, non-condensing |
| Pollution Degree | PD2 per IEC 60664-1 |
| Altitude | –1000 to +5000 m (restrictions apply) |
| EMC | IEC/EN 61000-6-4, IEC/EN 61000-6-2 |
| Overvoltage Category | Cat II per IEC 60664-1 |
| Protection Class | IP20 per IEC 60529 |
| Certifications | CE, UKCA, UL 61010-1, CSA C22.2 No. 61010-1 |
| Dimensions (W × D × H) | 77.9 × 105 × 9.8 mm |
| Weight (incl. base) | 73 g |
| Mounting | MTU (Module Termination Unit), 16 SCM slots per MTU |
| Mechanical Features | Mechanical keying, field-disconnect slider, electronic current limit |
| Hazardous Area | Installation permitted (intrinsic safety barrier NOT onboard; IS version = DIS890) |
