Application Scenarios
On a 12 MW dredger running ABB ACS 6000 propulsion drives, the starboard converter tripped “IGCT Stack Fail” 18 months into service—right in the middle of a channel-deepening window where tug relay wasn’t available. The post-mortem showed one 5SGX1060H0003 in the starboard rectifier had avalanched, and the adjacent 3BHE024415R0101 (GVC714A101) had logged a DESAT event 120 µs before the stack fuse blew—but the older GVC714A101 revision (early build) had a 200 ns propagation jitter on the soft-shutdown comparator that let the adjacent phase’s IGCT also take damage before the link cleared. The ship’s electrician swapped all four GVC714A101 boards on the starboard rack for fresh 3BHE024415R0101 units (current build, tighter timing spec) during the forced lay-up, and the port rack was proactively refreshed the same dry-dock. Sea trials post-refit showed clean gate-pulse oscillograms across all six phases, and the vessel returned to dredging with zero IGCT trips over the following 14 months. The chief engineer’s log note: “The 3BHE024415R0101 isn’t the power switch, but without it the 5SGX is flying blind—and at 12 MW, blind is expensive.”
h2 Parameter
| Main Parameters | Value/Description |
|---|---|

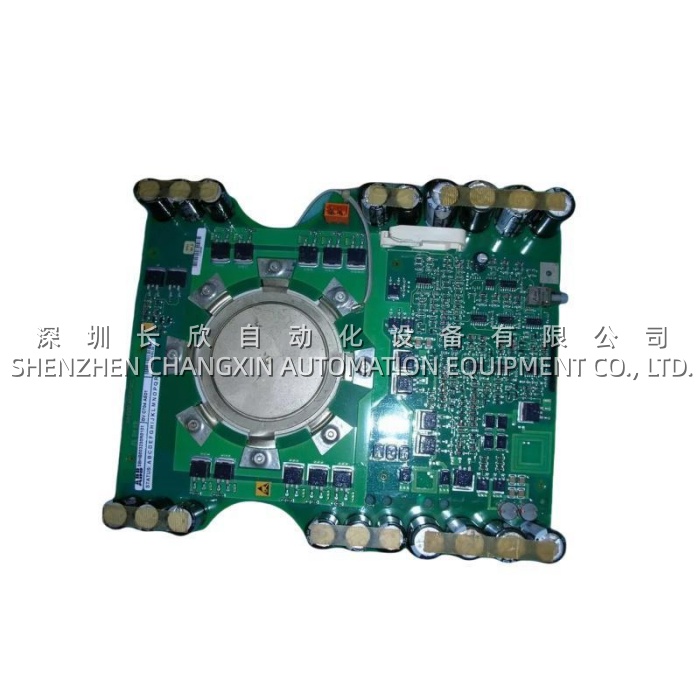

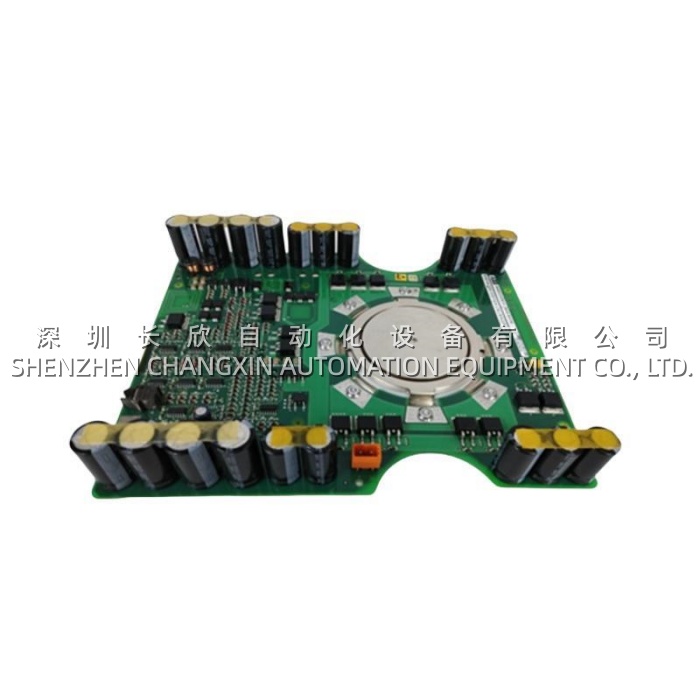

| Product Model | 3BHE024415R0101 (GVC714A101) |
| Paired IGCT | 5SGX1060H0003 (4500 V / 1060 A press-pack) |
| Manufacturer | ABB (Switzerland) |
| Product Category | IGCT Processor / Gate-Control Unit |
| Processor | 32-bit RISC, 400 MHz |
| Analog Input | 16 ch (voltage/current sense from IGCT stack) |
| Digital Output | 8 ch (status, fault, interlock to upstream) |
| Supply Voltage | 24 V DC ±20 % |
| Trigger Interface | Fiber-optic Rx (pulse in from AC800PEC/controller) |
| Protection | DESAT, overcurrent, UVLO, µs-class soft shutdown |
| Isolation | Control ↔ power side: ≥2.5 kV RMS (optical + galvanic) |
| Operating Temp. | -25 °C to +70 °C (cabinet ventilated) |
| Mounting | Power-unit stack, DIN / stud mount, IP20 (cabinet internal) |
| Compatible Drives | ABB ACS 6000, ACS 8000 (MV), marine converters |
h2 Technical Principles and Innovative Values
- Innovation Point 1: 400 MHz Processing Tightening the DESAT Window: Where older GVC-family boards ran sub-200 MHz and showed propagation jitter that could delay a soft-shutdown by 200–300 ns under load, the 3BHE024415R0101 refreshes the comparator + FPGA path at 400 MHz. On a 4500 V / 1060 A IGCT like the 5SGX1060H0003, that jitter reduction is the difference between a clean single-device trip and a cascaded double-avalanche that writes off an entire phase leg.
- Innovation Point 2: 16 AI + 8 DO Integration Without External Signal Conditioning: The 3BHE024415R0101 pulls Vce/Vge sense, stack-temperature thermistors, and auxiliary interlocks directly onto the 16 analog inputs, and pushes Fault/Ready/Stack-Trip on the 8 digital outputs—no external conditioning card between the IGCT press-pack and the drive controller. This collapses a signal-chain that on competitor MV drives needs two extra boards, reducing point-to-point wiring and the associated failure modes in high-vibration marine / mill skids.
- Innovation Point 3: Fiber-Upstream Handshake with AC800PEC: The GVC714A101 receives its gate-fire command over fiber from the AC800PEC rack (often the PPD113 we covered earlier), and the 3BHE024415R0101 timestamps the DESAT event relative to the fiber clock. That timestamp lets the drive controller reconstruct which µs within the 50/60 Hz cycle the fault landed—data that feeds ABB’s DSA (Dynamic Stability Assistant) and makes post-mortem on a blown IGCT actually actionable instead of “it failed somewhere in the positive half-cycle.”
h2 Application Cases and Industry Value
A 6-stand hot-strip finishing mill in Eastern Europe runs 6.3 MW main drives on ACS 6000, each inverter leg using two 5SGX1060H0003 IGCTs in series for the 6.6 kV DC link. After a cobble event overloaded Stand 4’s axis-2 motor, the drive logged a “Phase-U DESAT” and the 3BHE024415R0101 on that leg reported a 148 µs soft-shutdown latency—well within spec, and the IGCT survived. The mill’s drive engineer pulled the event log: the GVC714A101 had flagged rising Vce 40 µs before the hard DESAT threshold, giving the AC800PEC time to ramp torque down on the adjacent stands and avoid a multi-stand cascade. “The 3BHE024415R0101 bought us 40 µs of foresight,” the engineer noted—”in a rolling mill, 40 µs is two meters of strip. That’s the difference between a clean stop and a 200-metre wrap-up.”
Beyond mills and marine, identical + 5SGX1060H0003 pairs show up in offshore wind converter stations (where the IGCT handles the medium-voltage grid-side bridge), mine hoist MV drives, and large hydro excitation bypass paths—anywhere 4500 V / 1000 A+ switching with µs-class protection is non-negotiable.
h2 Related Product Combination Solutions
The 3BHE024415R0101 lives beside the 5SGX1060H0003 in an ACS 6000 power cubicle and rarely travels alone. Typical companions from the same drive ecosystem:
- 5SGX1060H0003 – The 4500 V / 1060 A press-pack IGCT this processor unit is built to drive; matching the revision to the IGCT batch avoids DESAT threshold drift.
- 3BHE047217R0101 (GDD360C / GD D360 C) – Sister gate-driver board we covered previously, targeted at slightly smaller IGCT/IGBT stacks (5SHY series); if your cubicle mixes 5SGX (main bridge) and 5SHY (aux/brake chopper), you’ll stock both and GDD360C.
- 3BHE023784R2630 (PPD113 B01-26-111000) – AC800PEC control module upstream; sends the fiber trigger pulse the 3BHE024415R0101 receives. If you’re refreshing one, refresh the other—timing skew across an old PPD113 + new can still show up as sub-µs jitter.
- 5SHY / 5SGF series IGCTs – Smaller siblings (e.g., 5SHY42L6500) often sharing the same ACS 6000 cubicle as the 5SGX1060H0003; ask for a cross-stack spare-pool quote.
- CDP (3BHB006943R0002, UNS0885A-Z V2) – Rectifier-bridge display/control module from the UNITROL side, but its sister HMI variant appears in ACS 6000 control cabinets for local stack-status readout—bundle for a full cubicle spare kit.
- 3BHL000985P0001 – ACS 6000 / AC800PEC rack backplane; often swapped together with the when a power-section overhaul includes the DIN rail and shielding.
